Toyota DYNA 200 — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM
28571MOTOR, FUEL CONTROL
CHINA SPEC
CHINA SPEC OR SWITZERLAND SPEC
28578COVER, FUEL CONTROL MOTOR
CHINA SPEC
CHINA SPEC OR SWITZERLAND SPEC
28579BRACKET, FUEL CONTROL MOTOR
28590RELAY ASSY, FUEL CONTROL
CHINA SPEC
CHINA SPEC OR SWITZERLAND SPEC
84580BROD ASSY, CONNECTING
7819710010CLIP, ACCELERATOR JOINT BALL
main78197-10010
9046108265
main90461-08265
9161160665
main91611-60665
9165160825
main91651-60825
9418040500
main94180-40500

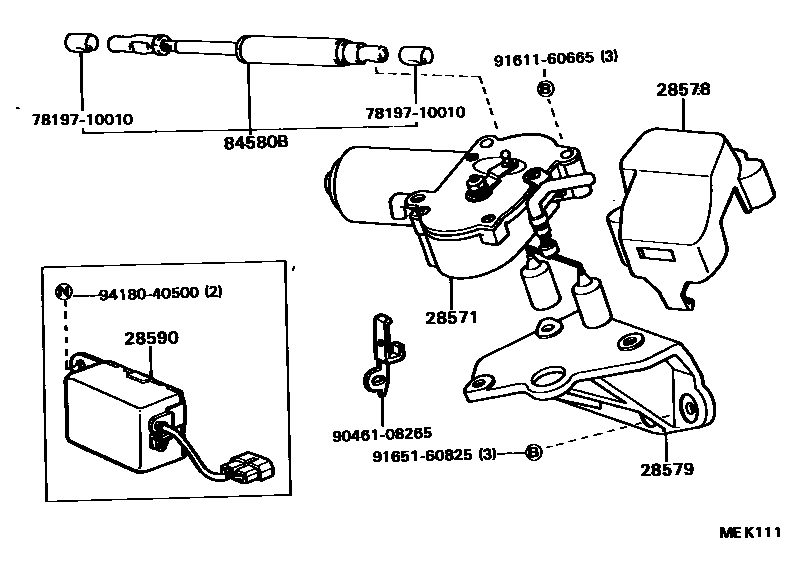

10 parts on this diagram · 1 diagram in section
ELECTRONIC DIESEL INJECTION CONTROL SYSTEM for Toyota DYNA 200
This section contains 10 genuine Toyota parts for the ELECTRONIC DIESEL INJECTION CONTROL SYSTEM system of the Toyota DYNA 200. Key components include: MOTOR, FUEL CONTROL, COVER, FUEL CONTROL MOTOR, BRACKET, FUEL CONTROL MOTOR, RELAY ASSY, FUEL CONTROL, ROD ASSY, CONNECTING.
