Toyota DYNA 200 — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060i198708-198808

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35030i198708-198806

main31204-35031i198806-198808

31210COVER ASSY, CLUTCH

main31210-25060i198708-198808

INDIA SPEC

main31210-36130i198708-198808

31231HUB, CLUTCH RELEASE BEARING

main31231-36090i198708-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45002i198708-198808

31232ACLIP, RELEASE BEARING HUB

main31232-35010i198708-198808

31236BSUPPORT, RELEASE FORK

main31236-35030i198708-198808

31250DISC ASSY, CLUTCH

main31250-36360i198708-198808

INDIA SPEC

main31250-36370i198708-198804

main31250-36371i198804-198808

33311WBEARING (FOR INPUT SHAFT)

main90363-12002i198708-198808

9011908134

main90119-08134

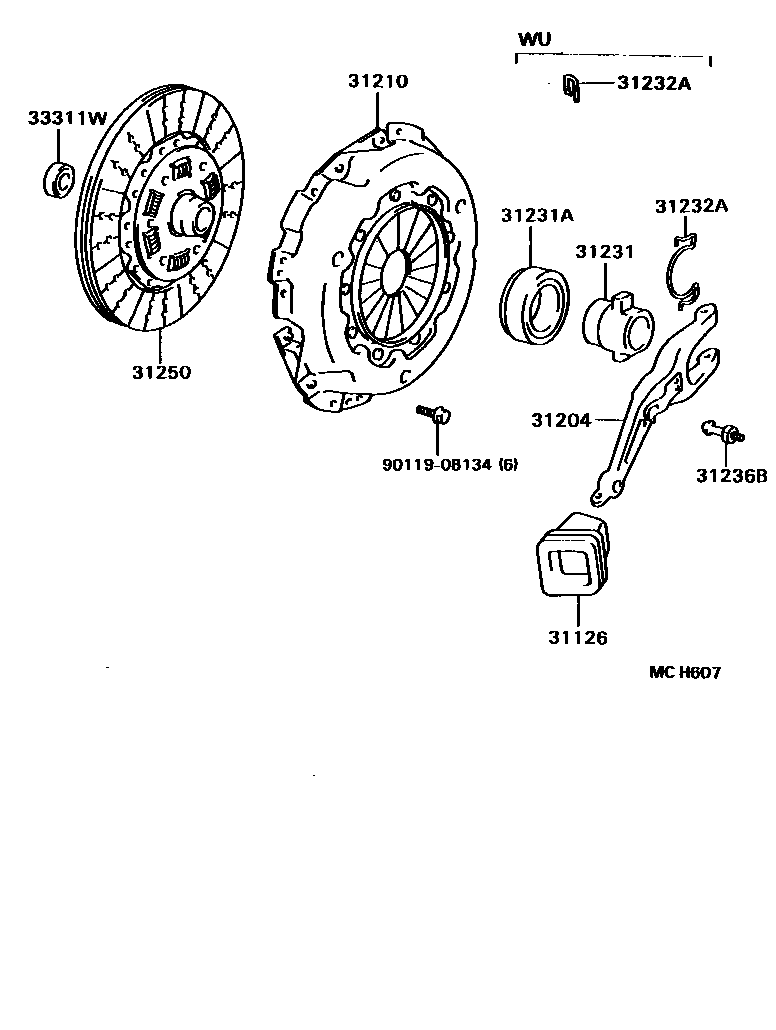

10 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota DYNA 200

This section contains 10 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota DYNA 200. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, HUB, CLUTCH RELEASE BEARING, BEARING, BALL(FOR CLUTCH RELEASE HUB).
