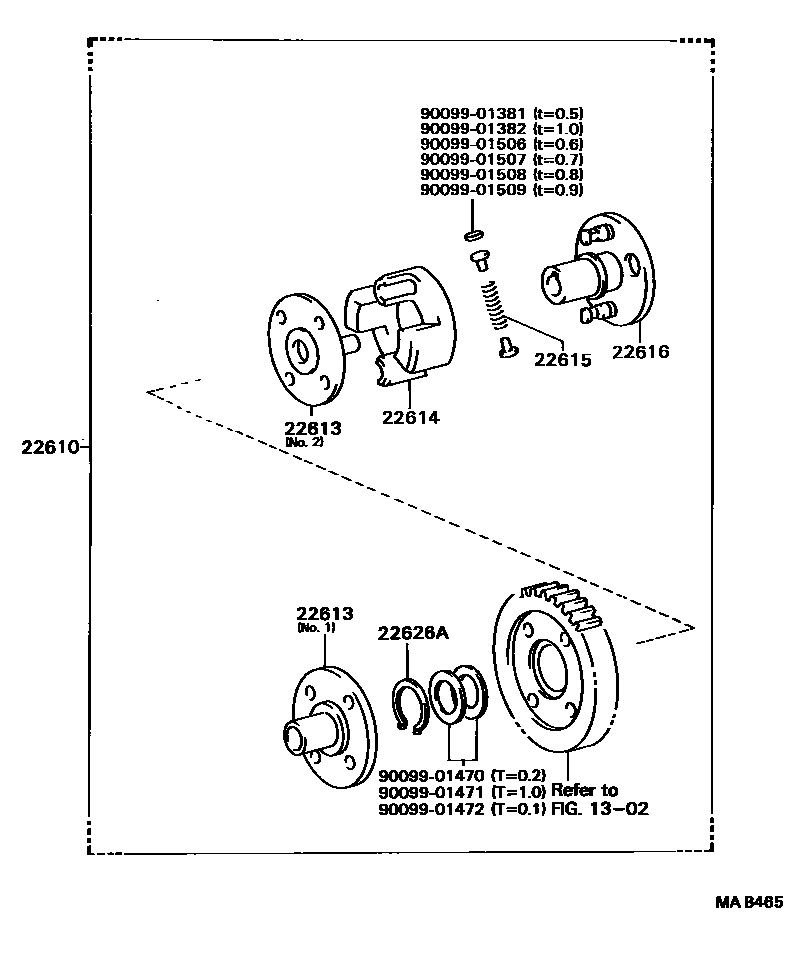

Toyota DYNA 200 — AUTOMATIC TIMER

0001 1 0002 1

1302

22610TIMER ASSY, AUTOMATIC

main22610-78100i1W..WU9#198808-198910

main22610-78140i1W..WU9#198910-199305

22613FLANGE, TIMER DRIVING

main22613-78100i1W..WU9#198808-198910

NO.1

main22633-78100i1W..WU9#198808-198910

NO.2

main22633-78140i1W..WU9#198910-199305

22614WEIGHT, TIMER

main22614-78030×2i1W..WU9#198808-198910

main22614-78140×2i1W..WU9#198910-199305

22615SPRING, TIMER

main22615-78030×2i1W..WU9#198808-198910

main22615-78140×4i1W..WU9#198910-198912

L=37.0

main22615-78141×4i1W..WU9#198910-198912

L=40.0

main22615-78142×4i1W..WU9#198910-198912

L=43.0

main22615-78143×4i1W..WU9#198912-199305

RED

main22615-78144×4i1W..WU9#198912-199305

WHITE

main22615-78145×4i1W..WU9#198912-199305

CLEAR

main22615-78146×4i1W..WU9#198912-199305

YELLOW

22616HUB, TIMER

main22616-78030i1W..WU9#198808-198910

main22663-78140i1W..WU9#198910-199305

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90018i1W..WU9#198910-199305

NO.1

main90096-90019i1W..WU9#198910-199305

NO.2

main90096-90021i1W..WU9#198808-198910

9009901381

main90099-01381

9009901382

main90099-01382

9009901470

main90099-01470

9009901471

main90099-01471

9009901472

main90099-01472

9009901506

main90099-01506

9009901507

main90099-01507

9009901508

main90099-01508

9009901509

main90099-01509

16 parts on this diagram · 2 diagrams in section
