Toyota DYNA 200 — ARMREST & VISOR

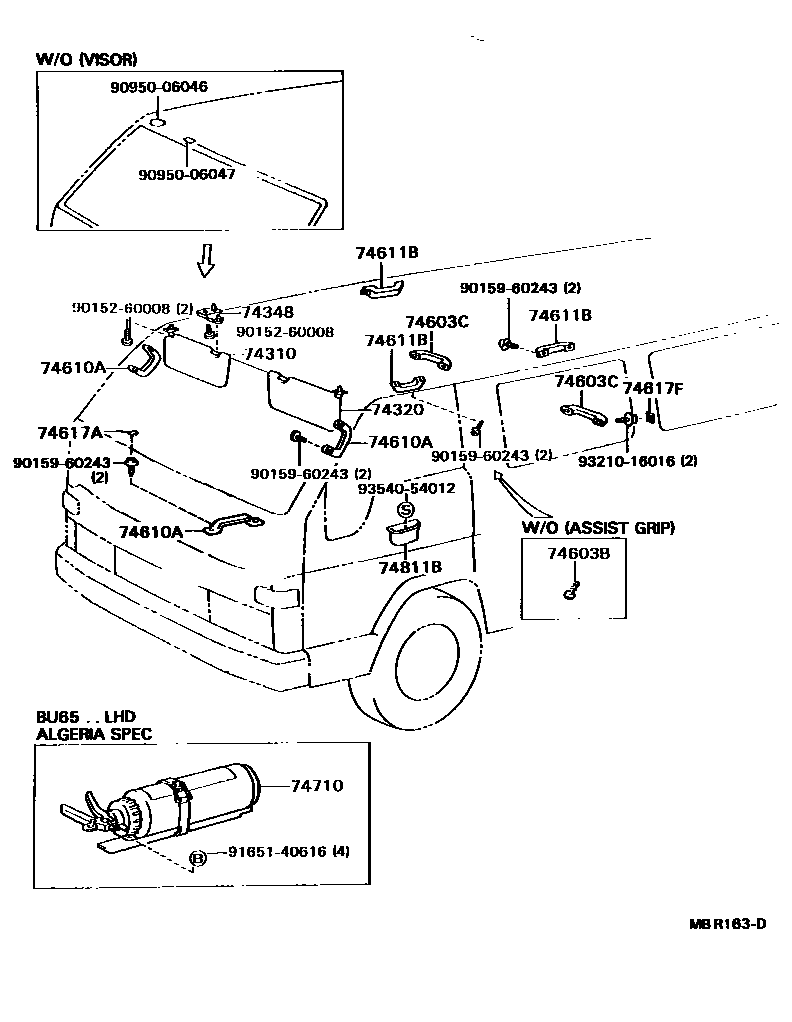

Parts diagram
74310VISOR ASSY, RH
main74310-95430-03i199109-199309
GRAY,TRIM1#
main74310-95430-06i198808-199109
BROWN,TRIM4#; W(ROOF VENTILATOR),BROWN,TRIM4#; W(ROOF VENTIRATOR),BROWN,TRIM4#
main74310-95436-03i199109-199204
GRAY,TRIM1#
main74310-95436-06i198808-199109
BROWN,TRIM4#
main74310-95437-03i199109-199204
W(ROOF VENTILATOR),GRAY,TRIM1#
main74310-95437-06i198808-199109
W(ROOF VENTILATOR),BROWN,TRIM4#
main74310-95439-03i199109-199505
GRAY,TRIM1#
main74310-95439-06i198808-199109
BROWN,TRIM4#
main74310-95440-03i199109-199505
W(ROOF VENTILATOR),GRAY,TRIM1#; W(ROOF VENTIRATOR),GRAY,TRIM1#
main74310-95440-06i198808-199109
W(ROOF VENTILATOR),BROWN,TRIM4#; W(ROOF VENTIRATOR),BROWN,TRIM4#
main74310-95441-03i199109-199505
GRAY,TRIM1#
main74310-95441-06i198808-199109
BROWN,TRIM4#
main74310-95443-03i199110-199305
TAIWAN PACKAGE,GRAY,TRIM1#
74320VISOR ASSY, LH
main74320-95418-03i199112-199305
GRAY,TRIM1#; W(ROOF VENTILATOR),GRAY,TRIM1#
main74320-95418-06i198808-199109
BROWN,TRIM4#; W(ROOF VENTILATOR),BROWN,TRIM4#; W(ROOF VENTIRATOR),BROWN,TRIM4#
main74320-95422-03i199109-199204
GRAY,TRIM1#
main74320-95422-06i198808-199109
BROWN,TRIM4#
main74320-95423-03i199109-199204
W(ROOF VENTIRATOR),GRAY,TRIM1#
main74320-95423-06i198808-199109
W(ROOF VENTIRATOR),BROWN,TRIM4#
main74320-95425-03i199112-199305
GRAY,TRIM1#
main74320-95425-06i198808-199109
BROWN,TRIM4#
main74320-95426-03i199109-199505
W(ROOF VENTILATOR),GRAY,TRIM1#; W(ROOF VENTIRATOR),GRAY,TRIM1#
main74320-95426-06i198808-199109
W(ROOF VENTILATOR),BROWN,TRIM4#; W(ROOF VENTIRATOR),BROWN,TRIM4#
main74320-95427-03i199109-199505
GRAY,TRIM1#
main74320-95427-06i198808-199109
BROWN,TRIM4#
main74320-95429-03i199110-199305
TAIWAN PACKAGE,GRAY,TRIM1#
74348HOLDER, VISOR
main74348-12010-23i199109-199505
GRAY,TRIM1#
main74348-12010-25i198808-199109
BEIGE,TRIM4#
74603BCLIP (FOR ASSIST GRIP)
74603CGRIP SUB-ASSY, ASSIST
main74603-20010-06×6i198907-199109
BROWN,TRIM4#
main74603-20010-20×6i199109-199309
BLACK,TRIM1#
main74603-95A04×6i198808-198907
74610AGRIP SUB-ASSY, ASSIST
main74610-95403-06×2i198808-199109
BROWN,TRIM4#
main74620-87001-B0×2i199109-199505
GRAY,TRIM1#
74611BGRIP, ASSIST
main74610-20030-B0i199110-199305
TAIWAN PACKAGE,GRAY,TRIM1#
main74611-92601-06i198808-199109
BROWN,TRIM4#
main74611-92601-B0×3i199109-199505
GRAY,TRIM1#
74617APLUG, ASSIST GRIP
main74617-14010-50×2i199110-199305
TAIWAN PACKAGE,BLUISH GRAY,TRIM1#
74617FPLUG, ASSIST GRIP
main74617-12010-06×12i198907-199109
BROWN,TRIM4#
main74617-12010-20×12i199109-199309
BLACK,TRIM1#
main74617-95A04×12i198808-198907
74710EXTINGUISHER ASSY
74811BHANDLE, DOOR PULL
main74811-87001-16×2i198808-199109
BROWN,TRIM4#
main74811-87001-B0×2i199109-199505
GRAY,TRIM1#
9015260008
main90152-60008
9015960243
main90159-60243
9095006046
main90950-06046
9095006047
main90950-06047
9165140616
main91651-40616
9321016016
main93210-16016
9354054012
main93540-54012

18 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota DYNA 200

This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota DYNA 200. Key components include: VISOR ASSY, RH, VISOR ASSY, LH, HOLDER, VISOR, CLIP (FOR ASSIST GRIP), GRIP SUB-ASSY, ASSIST.
