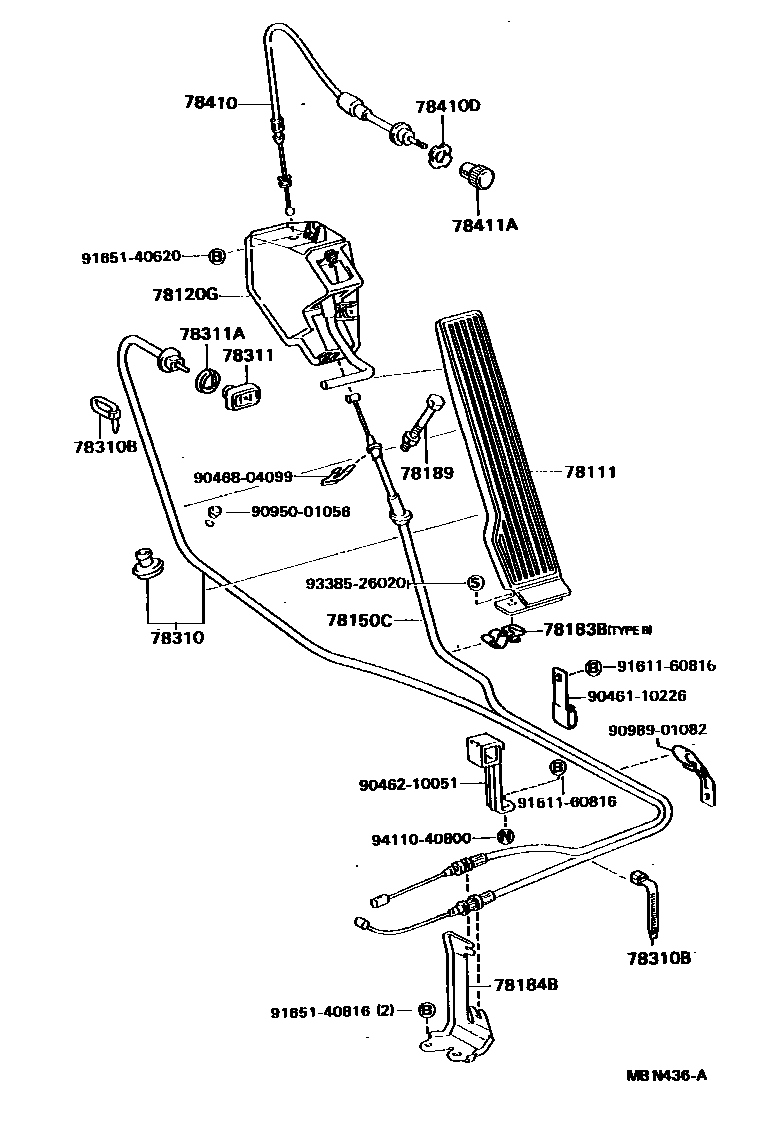

Toyota DYNA 200 — ACCELERATOR LINK
78111PEDAL, ACCELERATOR
78120GROD ASSY, ACCELERATOR PEDAL
78150CWIRE ASSY, ACCELERATOR FLEXIBLE
sub78150-37070
sub78150-37100
sub78150-37200
sub78150-37110
sub78150-37120
78183BCLAMP, ACCELERATOR CONTROL CABLE
78184BBRACKET, ACCELERATOR CONTROL CABLE
78189BOLT, ACCELERATOR PEDAL STOPPER
78310CABLE ASSY, CHOKE
78310BCLAMP, CHOKE CABLE
78311KNOB, CHOKE CONTROL CABLE
78311ANUT, CHOKE SHAFT SET
78410DNUT, THROTTLE
78411AKNOB, THROTTLE CONTROL CABLE
9046110226
main90461-10226
9046210051
main90462-10051
9046804099
main90468-04099
9095001056
main90950-01056
9098901082
main90989-01082
9161160816
main91611-60816
9165140620
main91651-40620
9165140816
main91651-40816
9338526020
main93385-26020
9411040800
main94110-40800
23 parts on this diagram · 5 diagrams in section
