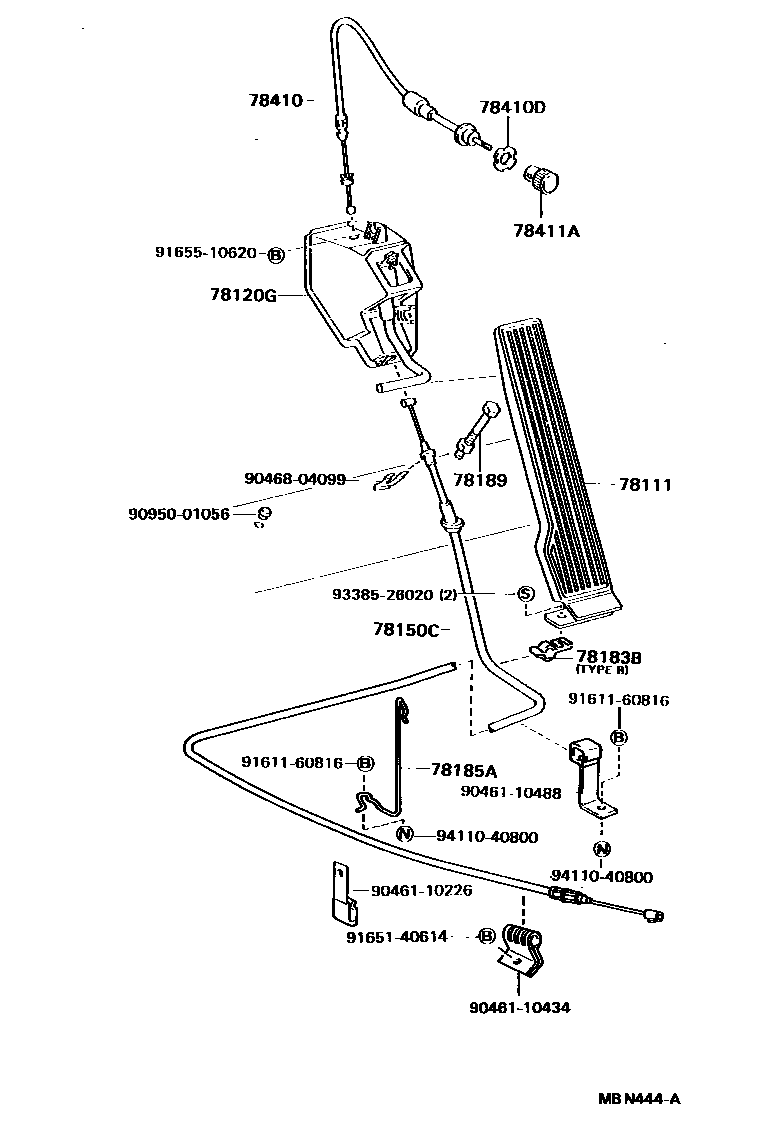

Toyota DYNA 200 — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78111PEDAL, ACCELERATOR

main78010-95400iBU85..LHD198708-198808

main78110-95014iBU6#,70,80,81..LHD198708-198808

main78110-95410iBU6#,8#,93..RHD198708-198808

78120GROD ASSY, ACCELERATOR PEDAL

main78202-95400iBU6#,80,81,82..RHD198708-198808

main78202-95401iBU6#,70,80,81,85..LHD198708-198808

main78202-95402iBU85,86,93..RHD198708-198808

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-95460iBU60,80..RHD198708-198808

main78150-95462iBU61,62,65,81,82..RHD198708-198808

main78150-95463iBU60,70,80..LHD198708-198808

main78150-95466iBU61,62,65,81..LHD198708-198808

main78150-95467iBU85,86,93..RHD198708-198808

main78150-95469iBU85..LHD198708-198808

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-95405iBU61,62,65,81..LHD198708-198808

TYPE A

main78183-95406iBU60,80,85,86,93..RHD198708-198808

TYPE B

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78169-95407iBU60,80..RHD198708-198808

main78169-95408iBU61,62,65,81,82198708-198808

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95402iBU6#,70,80,81..LHD198708-198808

main78208-95404iBU6#,80,81,82..RHD198708-198808

main78208-95405iBU85,86,93..RHD198708-198808

main78208-95406iBU85..LHD198708-198808

78410CABLE ASSY, THROTTLE CONTROL

main78404-95011iBU6#,8#,93..RHD198708-198808

sub78404-37020

main78404-95012iBU6#,70,80,81,85..LHD198708-198808

78410DNUT, THROTTLE

main78314-95010iBU6#,70,8#,93198708-198808

78411AKNOB, THROTTLE CONTROL CABLE

main78411-22010iBU6#,70,8#,93198708-198808

9046110226

main90461-10226

9046110434

main90461-10434

9046110488

main90461-10488

9046804099

main90468-04099

9095001056

main90950-01056

9161160816

main91611-60816

9165140614

main91651-40614

9165510620

main91655-10620

9338526020

main93385-26020

9411040800

main94110-40800

19 parts on this diagram · 4 diagrams in section
