Toyota DYNA 150 — WINDSHIELD WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85342HOLDER, WASHER NOZZLE
85345NOZZLE, WINDSHIELD WASHER
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355AJOINT, WINDSHIELD WASHER ELBOW
85360BRACKET ASSY, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=760)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=130
L=130
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=330)
L=1800(*H,L=440)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=340),NO.2
L=1450(*H,L=410),NO.1
L=1000(*H,L=340),NO.2
L=1000(*H,L=410),NO.1
L=1000(*H,L=410),NO.1,NO.2
L=1000(*H,L=340),NO.1,NO.2
85383HOLDER, FRONT WASHER NOZZLE
827111A240WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A240
9015960413
main90159-60413
9017906070
main90179-06070
9017906110
main90179-06110
9359056014
main93590-56014

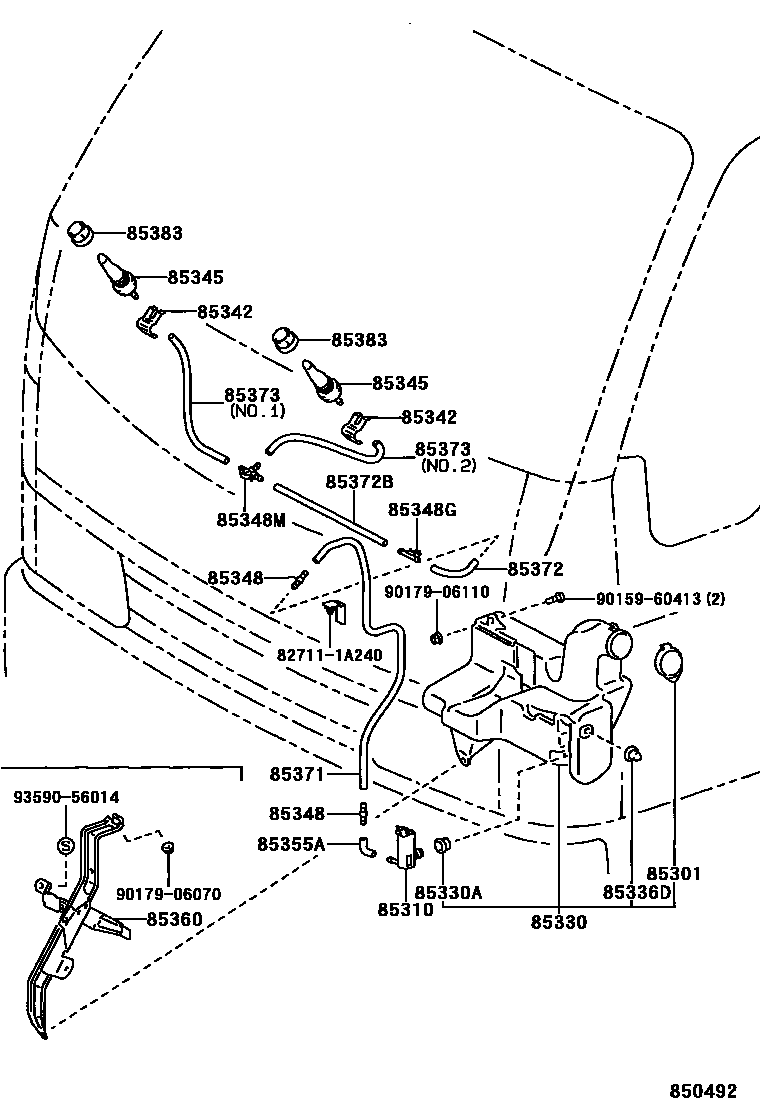

22 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota DYNA 150
This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota DYNA 150. Key components include: INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, PACKING, WINDSHIELD WASHER JAR.
