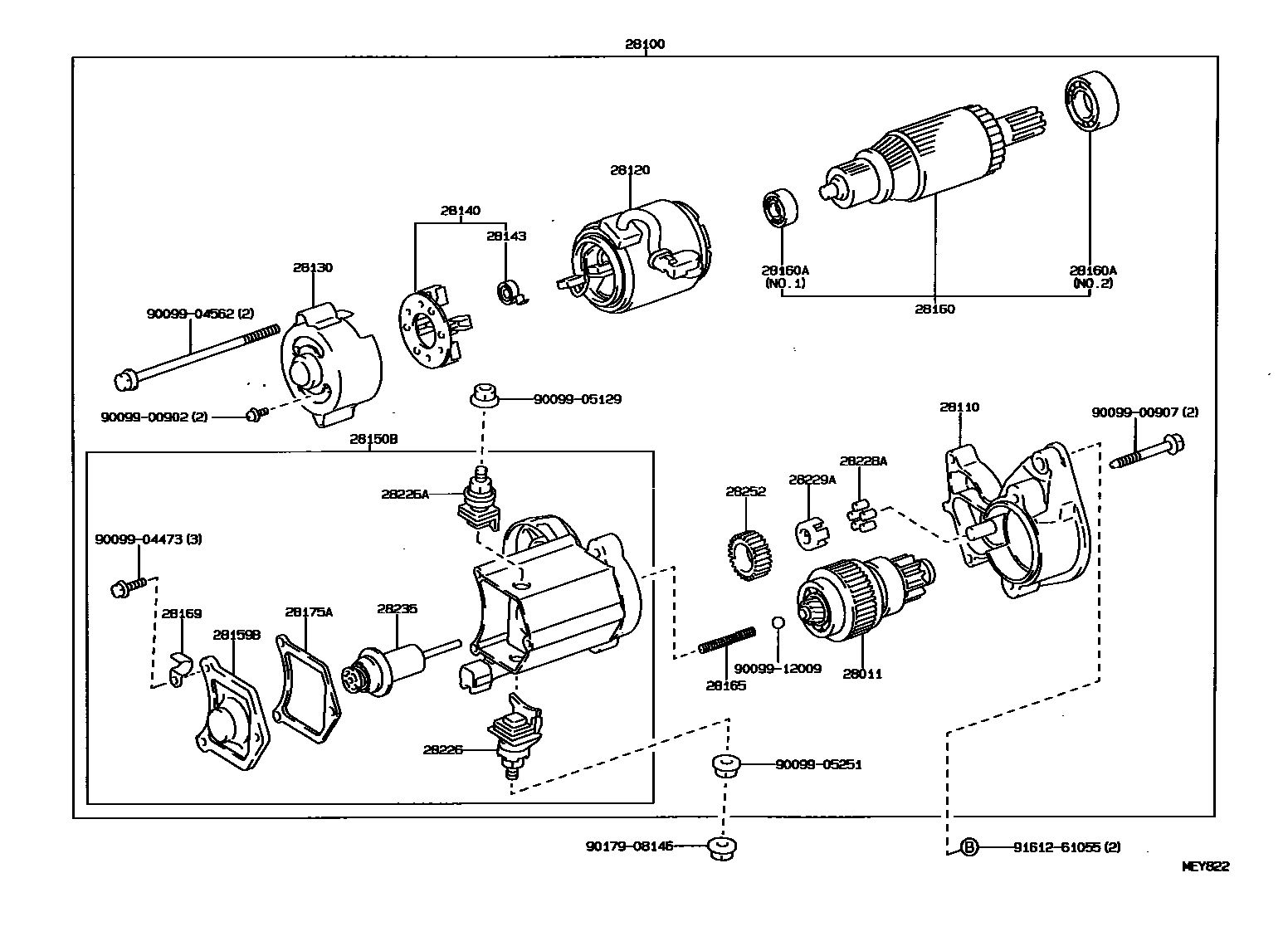

Toyota DYNA 150 — STARTER
28011CLUTCH SUB-ASSY, STARTER
W(80D26R BATTERY X2)
W(85D26R BATTERY X 2)
28100STARTER ASSY
12V 2.2KW
12V 2.7KW,W(80D26R BATTERY X2)
12V 2.0KW
12V 2.0KW
12V 2.2KW
12V 2.7KW
12V 2.7KW,W(BATTERY X 2)
12V 1.0KW
12V 1.0KW
28110HOUSING ASSY, STARTER DRIVE
W(85D26R BATTERY X 2)
W(80D26R BATTERY X2)
28120YOKE ASSY, STARTER
W(80D26R BATTERY X2)
W(85D26R BATTERY X 2)
28130FRAME ASSY, STARTER COMMUTATOR END
W(80D26R BATTERY X2)
28140HOLDER ASSY, STARTER BRUSH
W(85D26R BATTERY X 2)
W(80D26R BATTERY X2)
28143SPRING, STARTER BRUSH
28150BSWITCH ASSY, MAGNETIC
W(80D26R BATTERY X2)
W(80D26R BATTERY X2)
28159BCOVER, MAGNET SWITCH
W(85D26R BATTERY X 2)
W(80D26R BATTERY X2)
28160ARMATURE ASSY, STARTER
W(80D26R BATTERY X2)
W(85D26R BATTERY X 2)
28160ABEARING, STARTER ARMATURE
NO.1
NO.1
W(80D26R BATTERY X2),NO.1
W(85D26R BATTERY X 2),NO.1
NO.2
W(80D26R BATTERY X2),NO.2
W(85D26R BATTERY X 2),NO.2
NO.2
NO.2
NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
W(80D26R BATTERY X2)
W(85D26R BATTERY X 2)
28169CLAMP, STARTER MOTOR LEAD WIRE
28175AGASKET, MAGNET SWITCH COVER
W(80D26R BATTERY X2)
W(85D26R BATTERY X 2)
28226STARTER KIT, BATTERY TERMINAL
W(80D26R BATTERY X2)
W(80D26R BATTERY X2)
28226ASTARTER KIT, MOTOR TERMINAL
W(85D26R BATTERY X 2)
W(80D26R BATTERY X2)
28228AROLLER, STARTER CLUTCH
W(80D26R BATTERY X2)
W(85D26R BATTERY X 2)
28229ARETAINER, STARTER IDLE GEAR
W(85D26R BATTERY X 2)
W(80D26R BATTERY X2)
28235PLUNGER, MAGNET SWITCH
W(85D26R BATTERY X 2)
W(80D26R BATTERY X2)
28252GEAR, STARTER IDLE
W(80D26R BATTERY X2)
W(85D26R BATTERY X 2)
9009900902
main90099-00902
9009900907
main90099-00907
9009904473
main90099-04473
9009904562
main90099-04562
9009905129
main90099-05129
9009905251
main90099-05251
9009912009
main90099-12009
9017908146
main90179-08146
9161261055
main91612-61055
29 parts on this diagram · 4 diagrams in section
STARTER for Toyota DYNA 150
This section contains 63 genuine Toyota parts for the STARTER system of the Toyota DYNA 150. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, PLATE(FOR STARTER YOKE), COVER, STARTER END FRAME.
