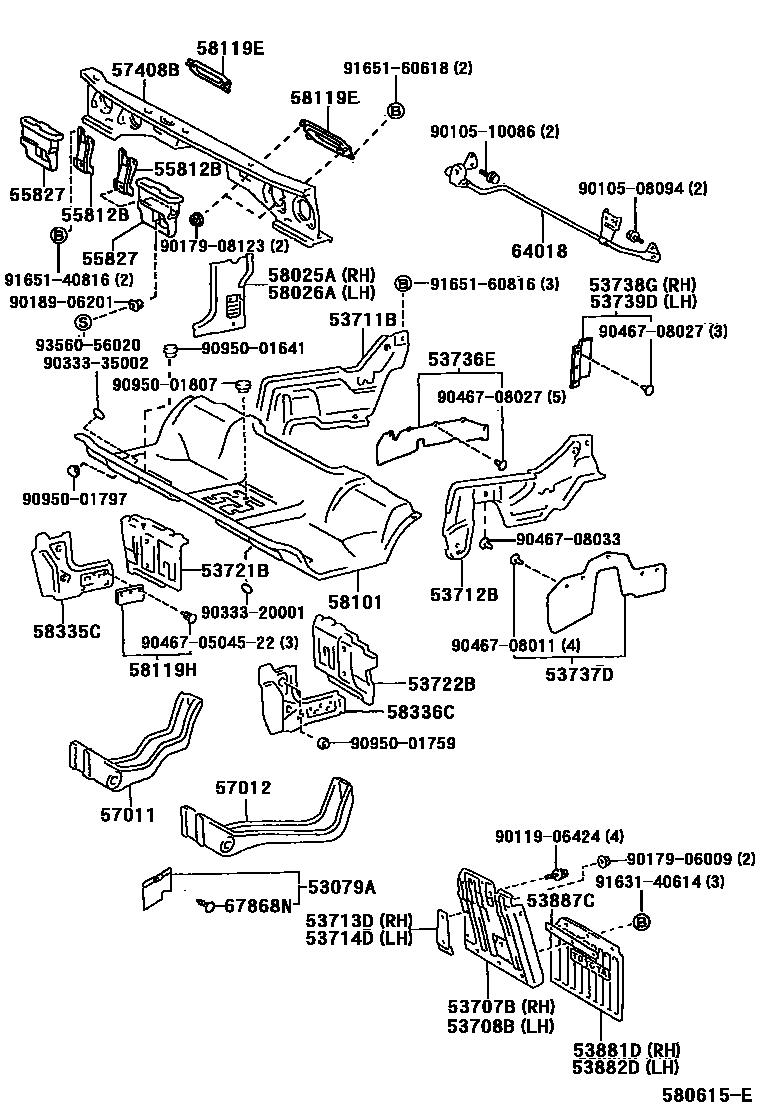

Toyota DYNA 150 — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

53079ASEAL SUB-ASSY, FRONT FENDER APRON, LOWER

main53079-25010×2iLY21#,YY211199505

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53715-95405iLY21#,YY211..125199505

main53715-95A01iLY21#,YY211..15T199505

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53716-25010iLY21#,YY211..125199505

main53716-95A02iLY21#,YY211..15T199505

53711BAPRON, FRONT FENDER, FRONT RH

main53711-25010iLY21#,YY211199505

main53711-25040iYY211..LHD199708

CHINA SPEC

53712BAPRON, FRONT FENDER, FRONT LH

main53712-25010iLY21#,YY211199505

53713DEXTENSION, FRONT FENDER APRON, RH

main53747-95011iLY21#,YY211..15T199505

53714DEXTENSION, FRONT FENDER APRON, LH

main53748-95011iLY21#,YY211..15T199505

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-37010iLY21#,YY211..RHD199505

main53721-37030iLY21#,YY211..LHD199505

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-37010iLY21#,YY211..LHD199505

main53722-37020iLY21#,YY211..RHD199505

53736ESEAL, FRONT FENDER APRON, RH

main53736-25030iLY21#,YY211199505

53737DSEAL, FRONT FENDER APRON, LH

main53737-25030iLY21#,YY211199505

53738GSEAL, FRONT FENDER APRON, REAR RH

main53738-25020iYY211199505

53739DSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-25020iYY211199505

53881DMUDGUARD, FRONT RH

main53881-25010iLY21#,YY211..15T199505

main53881-95401iLY21#,YY211..125199505

53882DMUDGUARD, FRONT LH

main53881-25010iLY21#,YY211..15T199505

main53881-95401iLY21#,YY211..125199505

53887CPLATE, FRONT MUDGUARD

main53887-95010×2iLY21#,YY211..15T199505

55812BBRACKET, VENTILATOR DUCT

main55812-37010iLY211,YY211..GEN200005

55827DUCT, VENTILATOR AIR GUIDE

main55827-37010iLY211,YY211..EUR,GEN199505-199708

57011MEMBER SUB-ASSY, FLOOR, RH

main57011-25020iLY21#,YY211199505

sub57011-25040

57012MENBER SUB-ASSY

main57012-25020iLY21#,YY211199505

sub57012-25040

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-25090iYY211..RHD..ST199505-199610

W(FRONT HEATER OR BOOSTVENTILATOR)

main57408-25100iYY211..RHD..ST199505-199610

main57408-25130iLY211..EUR199505-199708

W/O(FRONT HEATER)

main57408-25160iLY211..EUR199505-199708

W/O(FRONT HEATER) & W(HEADLAMP LEVELING)

main57408-25190iYY211..LHD199505

W(FRONT HEATER OR BOOSTVENTILATOR)

main57408-25200iYY211..LHD199505

main57408-25250iYY211..RHD..ST199610-199901

W(FRONT HEATER OR BOOSTVENTILATOR)

sub91651-40616

main57408-25251iYY211..RHD..ST199901-199905

W(FRONT HEATOR OR BOOSTVENTILATOR)

main57408-25260iYY211..RHD..ST199610-199901

sub91651-40616

main57408-25261iYY211..RHD..ST199901-199905

main57408-25290iLY211..ARL199610-199901

sub91651-40616

main57408-25291iLY211..ARL199901

main57408-25300iYY211..WT;LY211..RHD..GEN199610-199901

sub91651-40616

main57408-25301iLY211..RHD..GEN;LY212,YY211..WT..CBU199901

sub90333-25001

main57408-25310iYY211..WT;LY211..RHD..GEN199610-199901

W(FRONT HEATER OR BOOSTVENTILATOR)

sub91651-40616

main57408-25311iLY212..SA;YY211..WT;LY211..RHD..GEN199901

W(FRONT HEATER OR BOOSTVENTILATOR)

sub90333-25001

main57408-37021iLY211..ARL199505-199610

HONG KONG SPEC & W(BOOSTVENTILATOR);HONG KONG SPEC & W(FRONT HEATER)

main57408-37070iYY211..RHD..ST199505-199508

SINGAPORE SPEC & W(FRONT HEATER);SINGAPORE SPEC & W(BOOSTVENTILATER)

sub90333-25001

main57408-37080iLY211..LHD..GEN199505

W(FRONT HEATER OR BOOSTVENTILATOR)

main57408-37090iLY21#..EUR199505

W(HEADLAMP LEVELING)

main57408-37110iLY211..ST..15T..CBU199505-199610

HONG KONG SPEC

main57408-37120iYY211..WT;LY211..RHD..GEN199505-199610

sub90333-25001

main57408-37130iLY21#..EUR199505

main57408-37140iLY211..LHD..GEN199505

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-37011iLY21#,YY211..125199505

main58271-37011iLY21#,YY211..15T199505

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-95401iLY21#,YY211..125199505

main58272-37010iLY21#,YY211..15T199505

58101PAN SUB-ASSY, FRONT FLOOR

main58101-25014iLY21#,YY211..RHD199708

sub58111-25150

sub53724-95010

sub58239-25010

sub58249-95A00

sub58251-37011

sub58252-37011

sub58295-95A00

sub82715-95J04

sub90174-06002

sub90174-08008

main58101-25050iLY211,YY211..RHD199505-199610

sub55352-37010

main58101-25051iLY211,YY211..RHD199610-199708

sub58101-25100

main58101-25060iLY211,YY211..LHD199505-199610

sub55352-37010

main58101-25061iLY211,YY211..LHD199610-199708

main58101-25064iLY21#,YY211..LHD199708

sub58111-25024

sub53724-95010

sub58239-25010

sub58249-95A00

sub58251-37011

sub58252-37011

sub58295-95A01

sub82715-95J04

sub90174-06002

sub90174-08008

58119ECOVER, FRONT FLOOR SIDE, FRONT

main50819-37010iLY21#,YY211..RHD..GEN199505

main50819-37020iLY211,YY211..LHD199505-199708

58119HCOVER, FRONT FLOOR SIDE, FRONT

main58119-95400×2iLY21#,YY211199505

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37010iLY21#,YY211199505

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37010iLY21#,YY211199505

64018BAR SUB-ASSY, BODY

main64018-37040iLY21#..EUR199505

main64018-95413iLY211..ARL199505-199610

main64018-95A02iLY212..SA199909

67868NCLIP, DOOR WEATHERSTRIP, RH

main67868-95401×8iLY21#,YY211199505

9010508094

main90105-08094

9010510086

main90105-10086

9011906424

main90119-06424

9017906009

main90179-06009

9017908123

main90179-08123

9018906201

main90189-06201

9033320001

main90333-20001

9033335002

main90333-35002

904670504522

main90467-0504522

9046708011

main90467-08011

9046708027

main90467-08027

9046708033

main90467-08033

9095001641

main90950-01641

9095001759

main90950-01759

9095001797

main90950-01797

9095001807

main90950-01807

9163140614

main91631-40614

9165140816

main91651-40816

9165160618

main91651-60618

9165160816

main91651-60816

9356056020

main93560-56020

51 parts on this diagram · 3 diagrams in section
