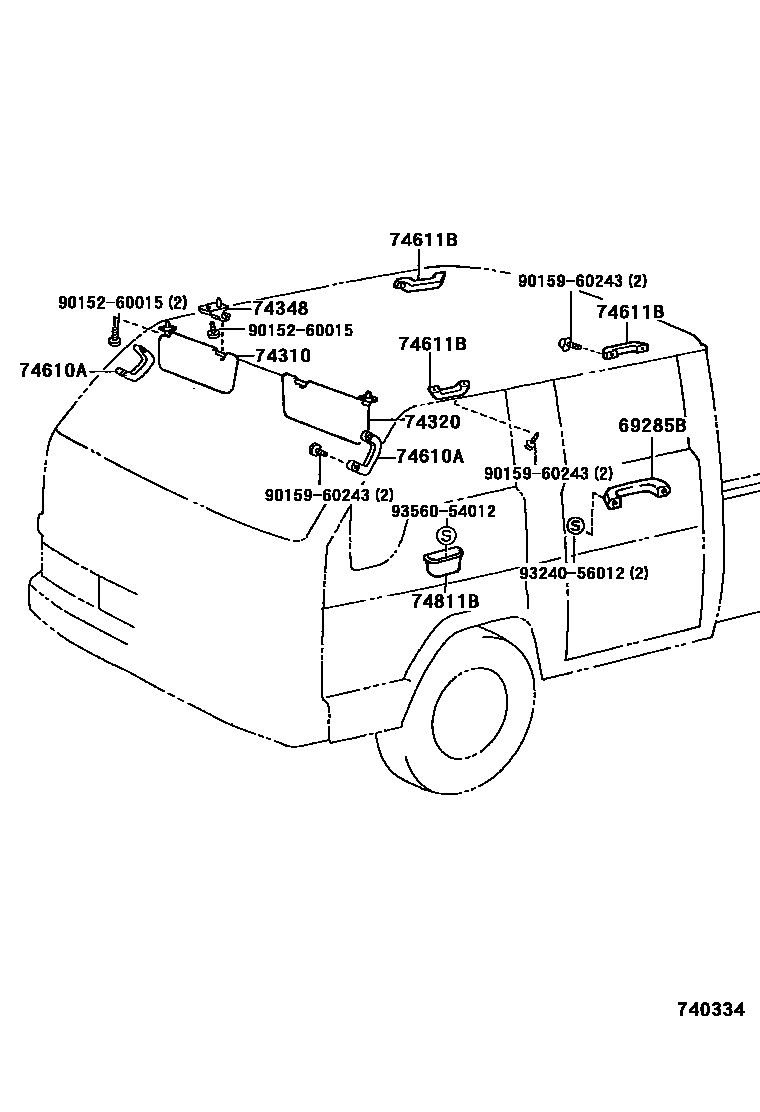

Toyota DYNA 150 — ARMREST & VISOR

69285BHANDLE, PULL

main69285-95700-B0×2i199505

GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-25010-B0i199505

LT. GRAY,TRIM1#

main74310-95430-B0i199505

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

main74310-95436-B0i199505

LT. GRAY,TRIM1#

main74310-95437-B0i199505

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-25010-B0i199505

LT. GRAY,TRIM1#

main74320-95418-B1i199505

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

main74320-95422-B0i199505

LT. GRAY,TRIM1#

main74320-95423-B0i199505

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

74348HOLDER, VISOR

main74348-25010-B0×2i199505

LT.GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74620-87001-B0×2i199505

GRAY,TRIM1#

74611BGRIP, ASSIST

main74611-92601-B0i199505

GRAY,TRIM1#

74811BHANDLE, DOOR PULL

main74811-87001-B0×2i199505

GRAY,TRIM1#

9015260015

main90152-60015

9015960243

main90159-60243

9324056012

main93240-56012

9356054012

main93560-54012

11 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota DYNA 150

This section contains 11 genuine Toyota parts for the ARMREST & VISOR system of the Toyota DYNA 150. Key components include: HANDLE, PULL, VISOR ASSY, RH, VISOR ASSY, LH, HOLDER, VISOR, GRIP SUB-ASSY, ASSIST.
