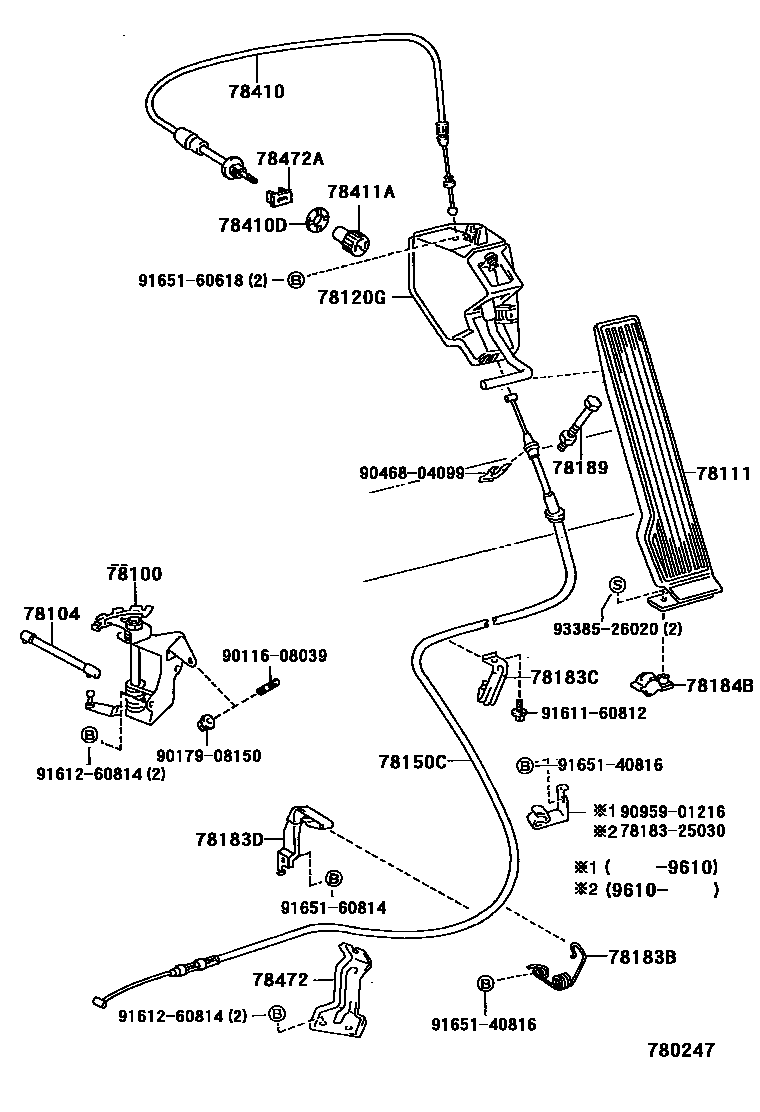

Toyota DYNA 150 — ACCELERATOR LINK
78100LINK ASSY, ACCELERATOR
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78120GROD ASSY, ACCELERATOR PEDAL
78150CWIRE ASSY, ACCELERATOR FLEXIBLE
CHINA SPEC
78183BCLAMP, ACCELERATOR CONTROL CABLE
CHINA SPEC
78183CCLAMP, ACCELERATOR CONTROL CABLE
78183DCLAMP, ACCELERATOR CONTROL CABLE
78184BBRACKET, ACCELERATOR CONTROL CABLE
78189BOLT, ACCELERATOR PEDAL STOPPER
78410CABLE ASSY, THROTTLE CONTROL
DENMARK SPEC
78410DNUT, THROTTLE
78411AKNOB, THROTTLE CONTROL CABLE
DENMARK SPEC
78472SUPPORT, THROTTLE CONTROL CABLE
78472ASUPPORT, THROTTLE CONTROL CABLE
BLUISH GRAY,TRIM1#
BLACK,TRIM1#
7818325030BRACKET, ACCELERATOR LINK ROD
main78183-25030
9011608039
main90116-08039
9017908150
main90179-08150
9046804099
main90468-04099
9095901216
main90959-01216
9161160812
main91611-60812
9161260814
main91612-60814
9165140816
main91651-40816
9165160618
main91651-60618
9165160814
main91651-60814
9338526020
main93385-26020
26 parts on this diagram · 4 diagrams in section
