Toyota DYNA 150 — PARTIAL ENGINE ASSEMBLY

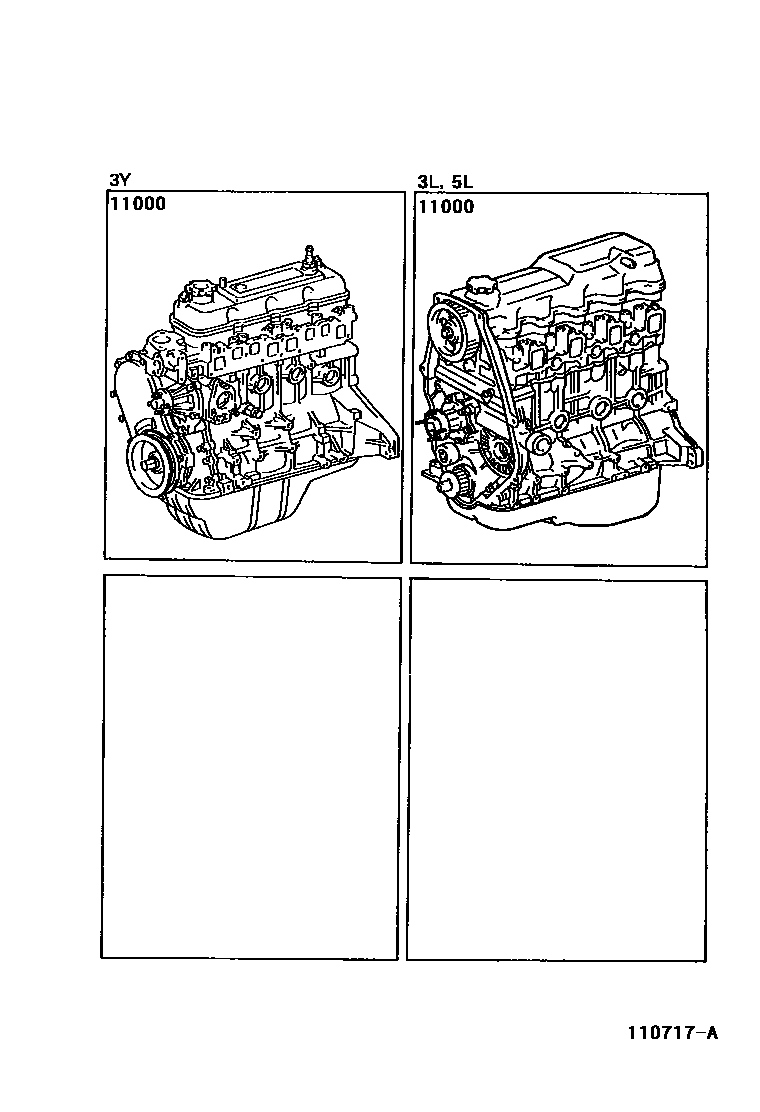

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-5B110i199505-199708

main19000-5B120i199505-199708

main19000-5B300i199708

main19000-5B310i199505-199805

main19000-5B540i199708

main19000-5B630i199805

main19000-5B680i199909

main19000-73712i199505-199512

main19000-73713i199512

main19000-73721i199505-199512

CHINA SPEC

main19000-73722i199512

CHINA SPEC

main19000-73771i199505-199512

SINGAPORL SPEC

main19000-73772i199512-199610

1 parts on this diagram · 1 diagram in section
