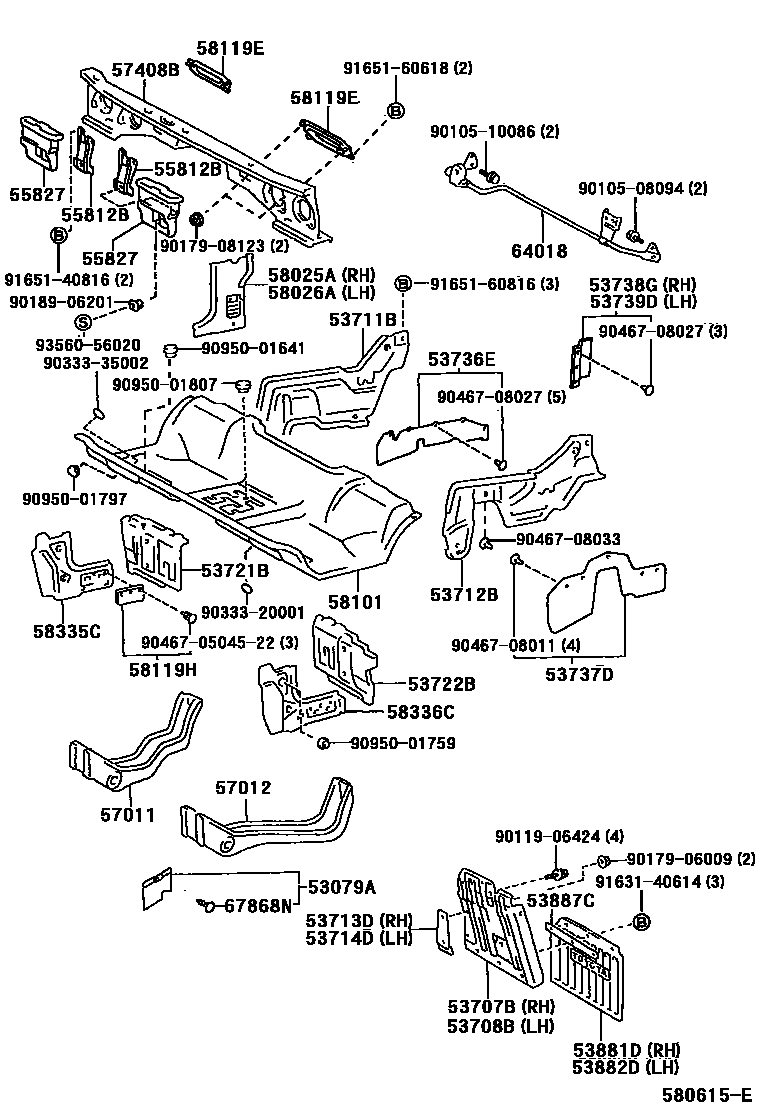

Toyota DYNA 150 — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
53079ASEAL SUB-ASSY, FRONT FENDER APRON, LOWER
53707BAPRON SUB-ASSY, FENDER SIDE, RH
53708BAPRON SUB-ASSY, FENDER SIDE, LH
53711BAPRON, FRONT FENDER, FRONT RH
CHINA SPEC
53712BAPRON, FRONT FENDER, FRONT LH
53713DEXTENSION, FRONT FENDER APRON, RH
53714DEXTENSION, FRONT FENDER APRON, LH
53721BAPRON SUB-ASSY, FENDER SIDE, RH
53722BAPRON SUB-ASSY, FENDER SIDE, LH
53736ESEAL, FRONT FENDER APRON, RH
53737DSEAL, FRONT FENDER APRON, LH
53738GSEAL, FRONT FENDER APRON, REAR RH
53739DSEAL, FRONT FENDER APRON TO FRAME, REAR
53881DMUDGUARD, FRONT RH
53882DMUDGUARD, FRONT LH
53887CPLATE, FRONT MUDGUARD
55812BBRACKET, VENTILATOR DUCT
55827DUCT, VENTILATOR AIR GUIDE
57011MEMBER SUB-ASSY, FLOOR, RH
57012MENBER SUB-ASSY
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
W(FRONT HEATER OR BOOSTVENTILATOR)
W/O(FRONT HEATER)
W/O(FRONT HEATER) & W(HEADLAMP LEVELING)
W(FRONT HEATER OR BOOSTVENTILATOR)
W(FRONT HEATER OR BOOSTVENTILATOR)
W(FRONT HEATOR OR BOOSTVENTILATOR)
W(FRONT HEATER OR BOOSTVENTILATOR)
W(FRONT HEATER OR BOOSTVENTILATOR)
HONG KONG SPEC & W(BOOSTVENTILATOR);HONG KONG SPEC & W(FRONT HEATER)
SINGAPORE SPEC & W(FRONT HEATER);SINGAPORE SPEC & W(BOOSTVENTILATER)
W(FRONT HEATER OR BOOSTVENTILATOR)
W(FRONT HEATER OR BOOSTVENTILATOR)
W(HEADLAMP LEVELING)
HONG KONG SPEC
SINGAPORE SPEC
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58101PAN SUB-ASSY, FRONT FLOOR
58119ECOVER, FRONT FLOOR SIDE, FRONT
58119HCOVER, FRONT FLOOR SIDE, FRONT
58335CPLATE, FLOOR SIDE, FRONT RH
58336CPLATE, FLOOR SIDE, FRONT LH
64018BAR SUB-ASSY, BODY
HONG KONG SPEC
W(FRONT SEAT BELT=ELR)
67868NCLIP, DOOR WEATHERSTRIP, RH
9010508094
main90105-08094
9010510086
main90105-10086
9011906424
main90119-06424
9017906009
main90179-06009
9017908123
main90179-08123
9018906201
main90189-06201
9033320001
main90333-20001
9033335002
main90333-35002
904670504522
main90467-0504522
9046708011
main90467-08011
9046708027
main90467-08027
9046708033
main90467-08033
9095001641
main90950-01641
9095001759
main90950-01759
9095001797
main90950-01797
9095001807
main90950-01807
9163140614
main91631-40614
9165140816
main91651-40816
9165160618
main91651-60618
9165160816
main91651-60816
9356056020
main93560-56020
51 parts on this diagram · 3 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota DYNA 150
This section contains 78 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota DYNA 150. Key components include: PLATE, STEP, SEAL SUB-ASSY, FRONT FENDER APRON, LOWER, APRON SUB-ASSY, FENDER SIDE, RH, APRON SUB-ASSY, FENDER SIDE, LH, APRON, FRONT FENDER, FRONT RH.
