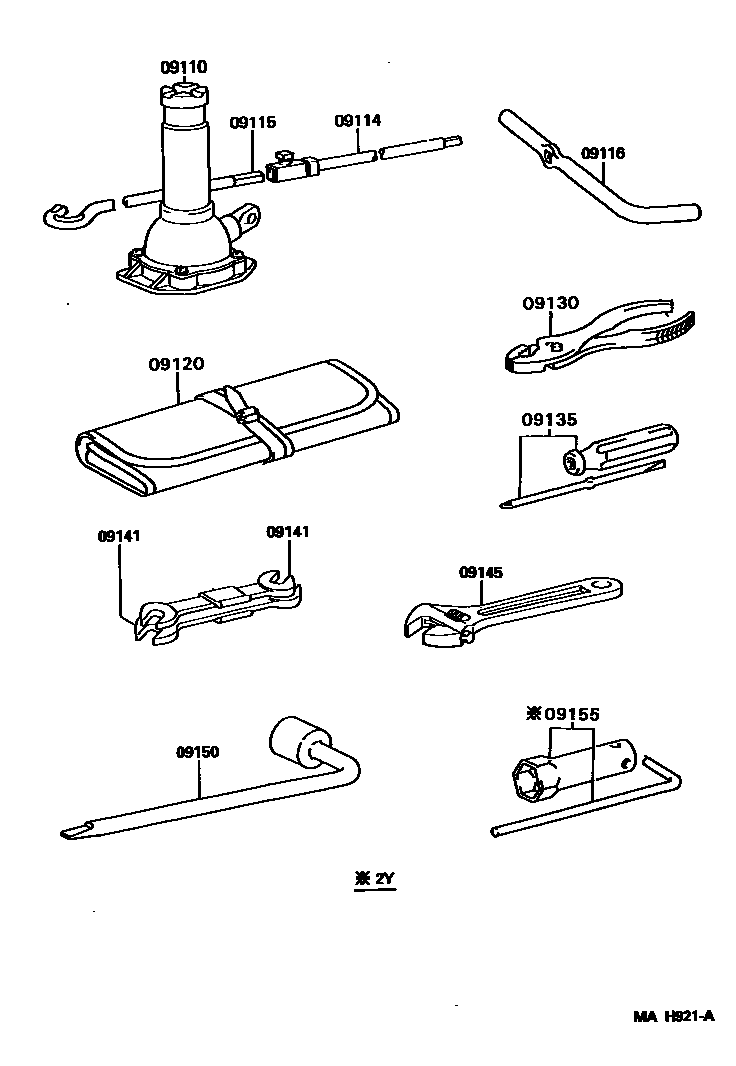

Toyota DYNA 100 — STANDARD TOOL

09110JACK ASSY

main09110-25080i199505-199610

main09110-25100i199505-199610

main09110-25101i199610-199901

main09111-25082i199901

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010i199505

09115ROD SUB-ASSY, JACK HANDLE

main09115-35070i199505

09116LEVER, JACK HANDLE

main09116-35041i199505

09120BAG, TOOL

main09120-26021i199505

09130PLIERS

main99913-11500i199505

09135DRIVER, SCREW

main99915-10700i199505

09141SPANNER

main99914-10810i199505

8 X 10

main99914-11214i199505

12 X 14

09145WRENCH, MONKEY

main99911-11200i199505

09150WRENCH, HUB NUT BOX

main09150-26030i199505

09155WRENCH, SPARK PLUG

main09155-41010i199505

11 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota DYNA 100

This section contains 11 genuine Toyota parts for the STANDARD TOOL system of the Toyota DYNA 100. Key components include: JACK ASSY, EXTENSION SUB-ASSY, JACK HANDLE, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE, BAG, TOOL.
