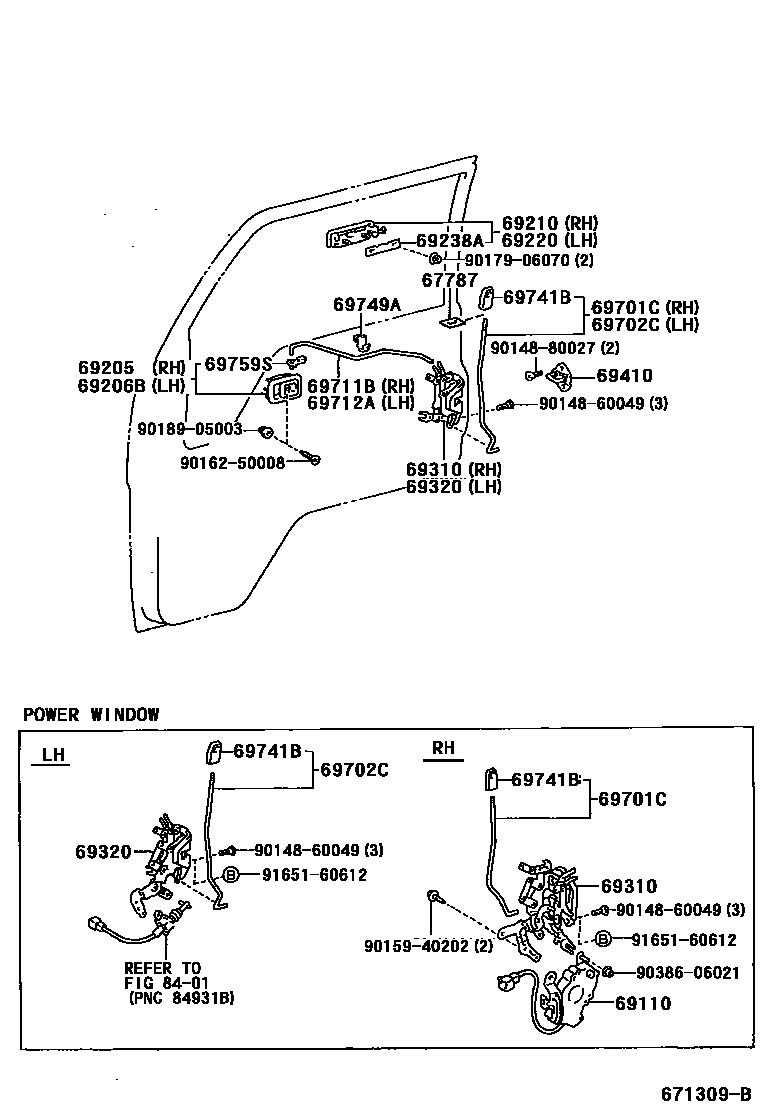

Toyota DYNA 100 — FRONT DOOR LOCK & HANDLE
67787SILENCER, FRONT DOOR LOCKING BUTTON KNOB
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
GRAY,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69238APAD, DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
W(POWER WINDOW)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER WINDOW)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
BLACK,TRIM1#
69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
BLACK,TRIM1#
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
BLACK,TRIM1#
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SSNAP, FRONT DOOR INSIDE HANDLE
GRAY
GREEN
8401SWITCH & RELAY & COMPUTER
9014860049
main90148-60049
9014880027
main90148-80027
9015940202
main90159-40202
9016250008
main90162-50008
9017906070
main90179-06070
9018905003
main90189-05003
9038606021
main90386-06021
9165160612
main91651-60612
26 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota DYNA 100
This section contains 26 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota DYNA 100. Key components include: SILENCER, FRONT DOOR LOCKING BUTTON KNOB, ACTUATOR ASSY, FRONT DOOR LOCK, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
