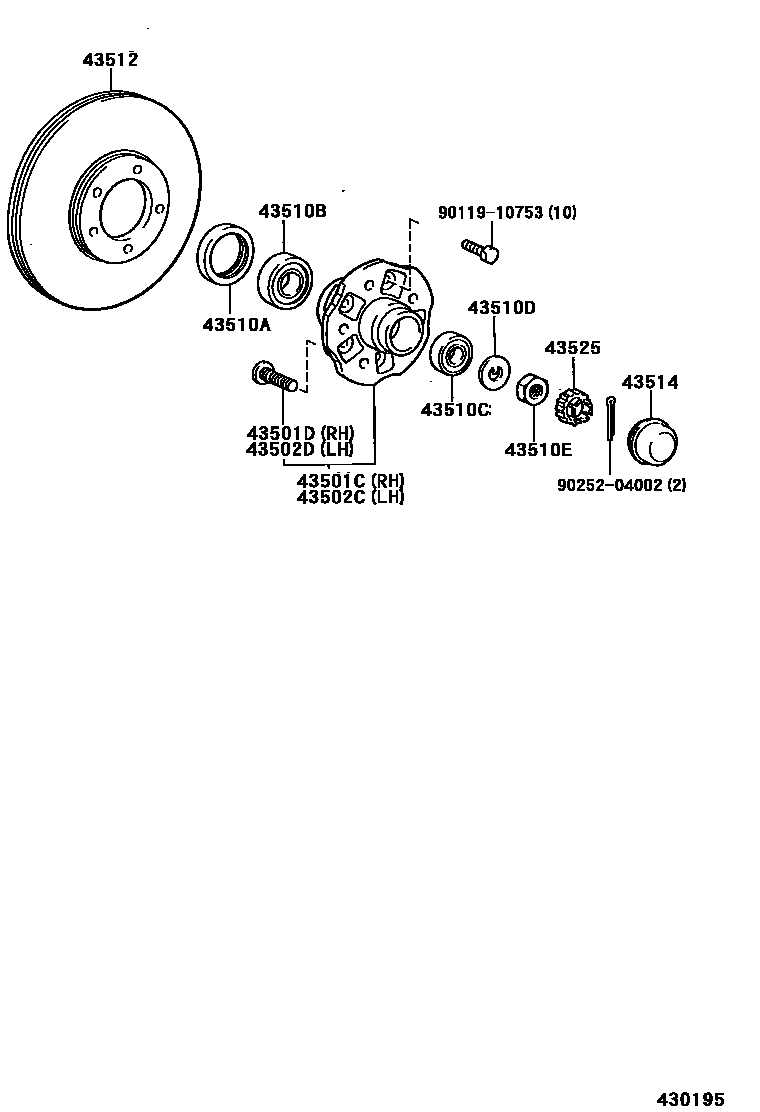

Toyota DYNA 100 — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-26050i199505

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047×5i199505

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-26050i199505

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047×5i199505

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005×2i199505

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001×2i199505

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001×2i199505

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007×2i199505

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2i199505

43512DISC, FRONT

main43512-26070×2i199505

43514CAP, FRONT HUB GREASE

main43514-35010×2i199505

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2i199505

9011910753

main90119-10753

9025204002

main90252-04002

14 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota DYNA 100

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota DYNA 100. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH), SEAL, OIL (FOR FRONT AXLE HUB).
