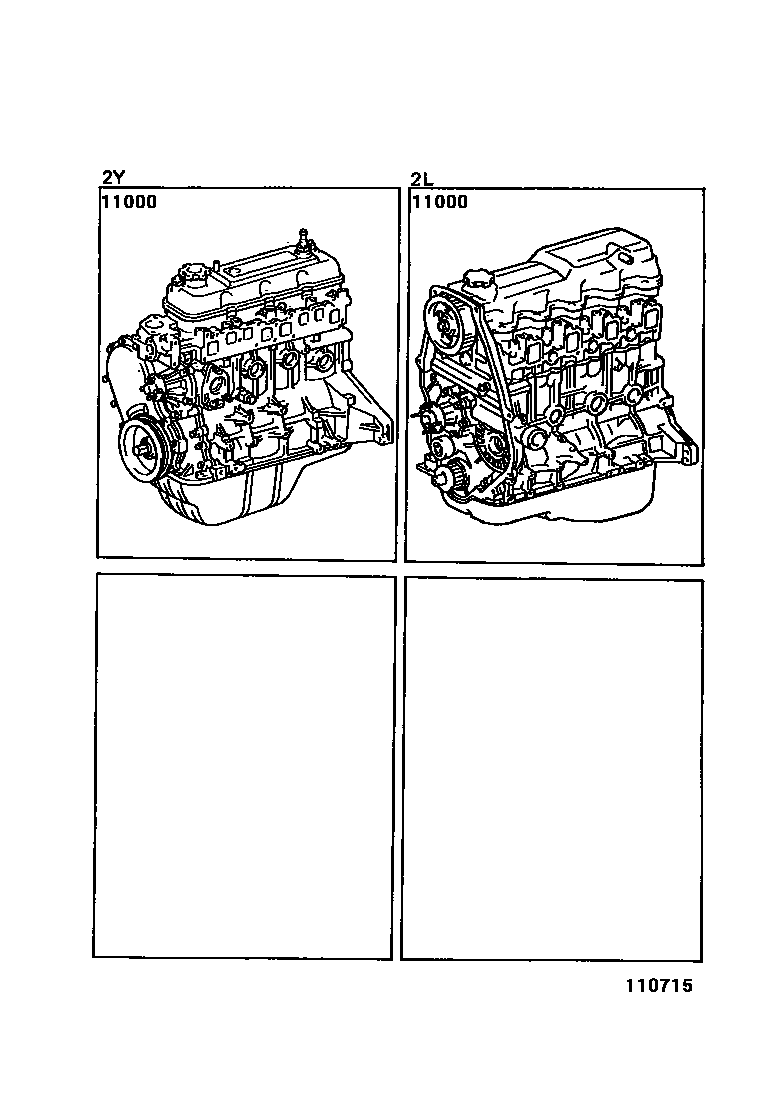

Toyota DYNA 100 — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-5B320i199505-199805

main19000-5B330i199505

main19000-5B620i199805

main19000-72331i199505

1 parts on this diagram · 1 diagram in section
