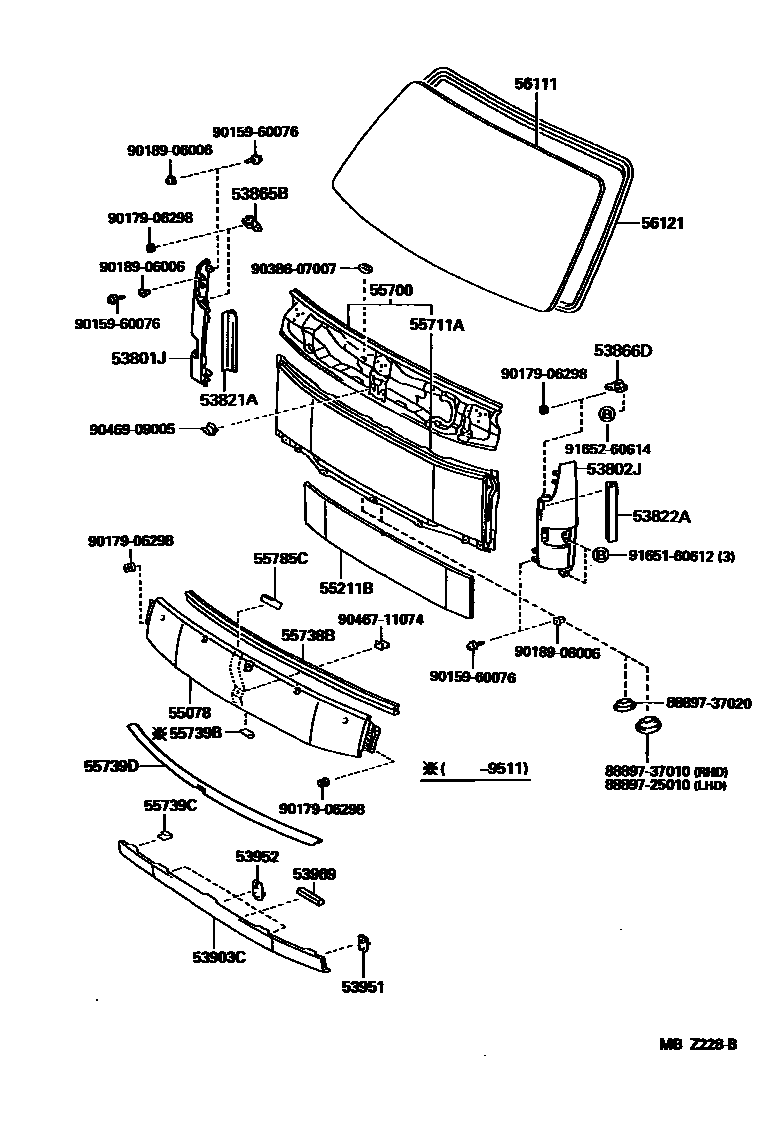

Toyota DYNA 100 — FRONT PANEL & WINDSHIELD GLASS

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-37010iLY100,YY100199505

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-37010iLY100,YY100199505

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-37020iLY100,YY100199505

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-37020iLY100,YY100199505

53865BPLATE, FRONT FENDER EXTENSION, RH

main53865-37010iLY100,YY100199505

53866DPLATE, FRONT FENDER EXTENSION, LH

main53866-37010iLY100,YY100199505

53903CGARNISH SUB-ASSY, FRONT PANEL, LOWER

main53903-37010iLY100,YY100..ARL,EUR199505

53951SUPPORT, FRONT END PANEL, UPPER

main53951-37010×2iLY100,YY100..ARL,EUR199505

53952SUPPORT, FRONT END PANEL, LOWER

main53952-37010×3iLY100,YY100..ARL,EUR199505

53969PACKING, AIR CLEANER INLET, NO.4

main53969-37010×2iLY100,YY100..ARL,EUR199505

55078COVER SUB-ASSY, FRONT PANEL

main55078-37010iLY100,YY100..RHD199505

main55078-37020iLY100,YY100..LHD199505

55211BSILENCER, FRONT PANEL

main55211-37010iLY100..EUR199505

sub55211-37020

55700PANEL ASSY, FRONT

main55700-37030iLY100..RHD..GEN199505

W(FRONT HEATER OR BOOST VENTILATOR)

main55700-37040iLY100..LHD199505

W(FRONT HEATER OR BOOST VENTILATOR)

main55700-37070iLY100..RHD..GEN199505

main55700-37080iLY100,YY100..LHD199505-199708

W/0(FRONT HEATER)

55711APANEL, FRONT, LOWER

main55711-37030iLY100,YY100199505

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37010iLY100,YY100199505

55739BPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37010×2iLY100,YY100199505-199511

55739CPROTECTER, FRONT PANEL COVER, NO.2

main55739-37010×5iLY100,YY100..ARL,EUR199505

55739DPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37020iLY100,YY100199505

55785CPAD, FRONT PANEL COVER

main55785-37010iLY100,YY100199505-199603

main82712-37010iLY100,YY100199603

56111GLASS, WINDSHIELD

main56111-37011iLY100,YY100199505-199610

*TL,T=5.7

main56111-37021iLY100,YY100..GEN199505-199905

*LAM,T=5.7,BRONZE

main56111-37080iLY100,YY100199610

*TL,T=5.7,GREEN

56121WEATHERSTRIP, WINDSHIELD

main56121-37010iLY100,YY100199505

8889725010VALVE, COOLER MAGNET

main88897-25010

8889737010VALVE, COOLER MAGNET

main88897-37010

8889737020VALVE, COOLER MAGNET

main88897-37020

9015960076

main90159-60076

9017906298

main90179-06298

9018906006

main90189-06006

9038607007

main90386-07007

9046711074

main90467-11074

9046909005

main90469-09005

9165160612

main91651-60612

9165260614

main91652-60614

32 parts on this diagram · 1 diagram in section
