Toyota DYNA 100 — FOG LAMP

81210LAMP ASSY, FOG

main81210-39155i199505

81210BBULB, FOG LAMP

main90981-13029×2i199505

12V 35W

81211GLENS, FOG LAMP, RH

main81211-95403i199505

81212GASKET, FOG LAMP LENS

main81212-95403×2i199505

81220LAMP ASSY, FOG, LH

main81220-39095i199505

81221GLENS, FOG LAMP, LH

main81221-95403i199505

8121995403BOLT, FOG LAMP

main81219-95403

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

9018905027

main90189-05027

9 parts on this diagram · 1 diagram in section

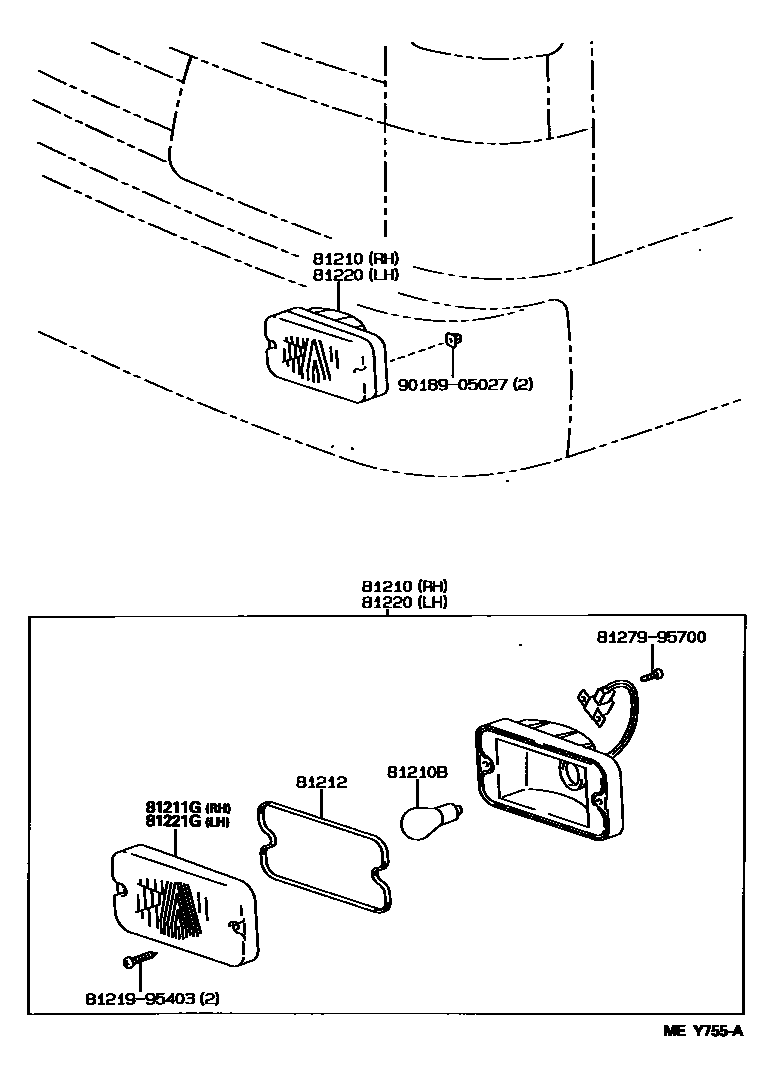

FOG LAMP for Toyota DYNA 100

This section contains 9 genuine Toyota parts for the FOG LAMP system of the Toyota DYNA 100. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LENS, FOG LAMP, RH, GASKET, FOG LAMP LENS, LAMP ASSY, FOG, LH.
