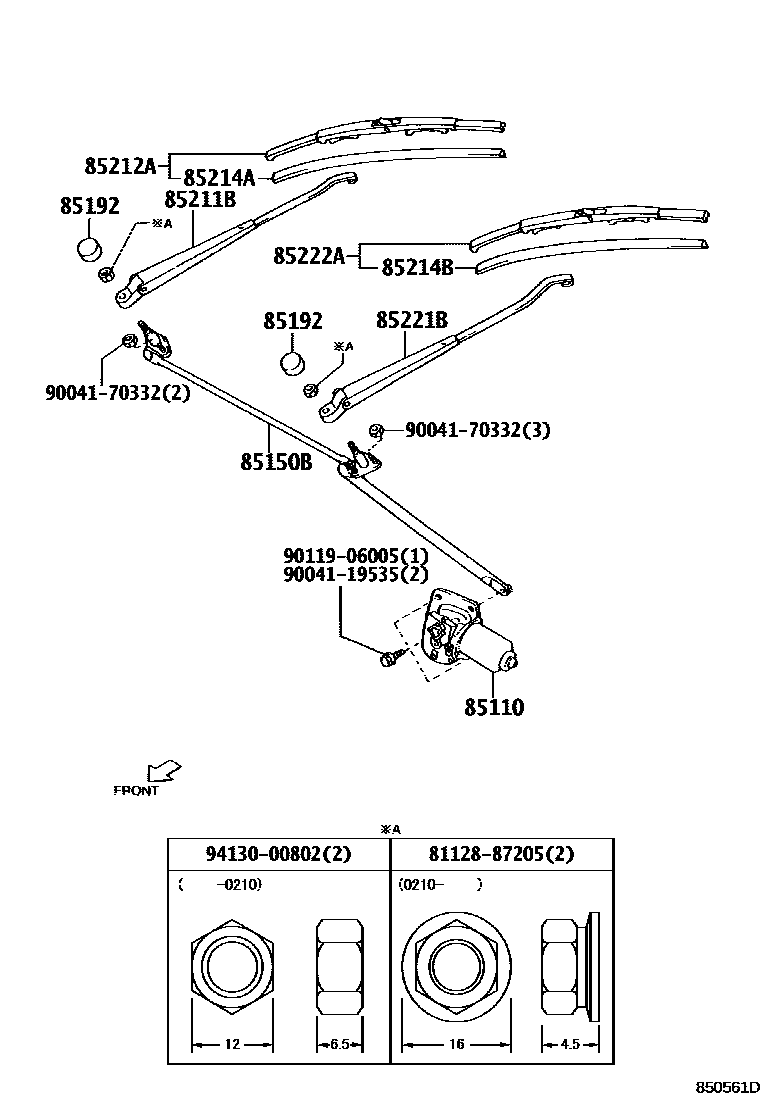

Toyota DUET — WINDSHIELD WIPER
85150BLINK ASSY, WIPER
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
8112887205NUT, HEADLAMP
main81128-87205
9004119535
main90041-19535
9004170332
main90041-70332
9011906005
main90119-06005
9413000802
main94130-00802
14 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota DUET
This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota DUET. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
