Toyota DUET — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-97203i199809

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2i199809

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-87212i199809-199911

main81731-87213i199912

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-97203i199809

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-87212i199809-199911

main81731-87213i199912

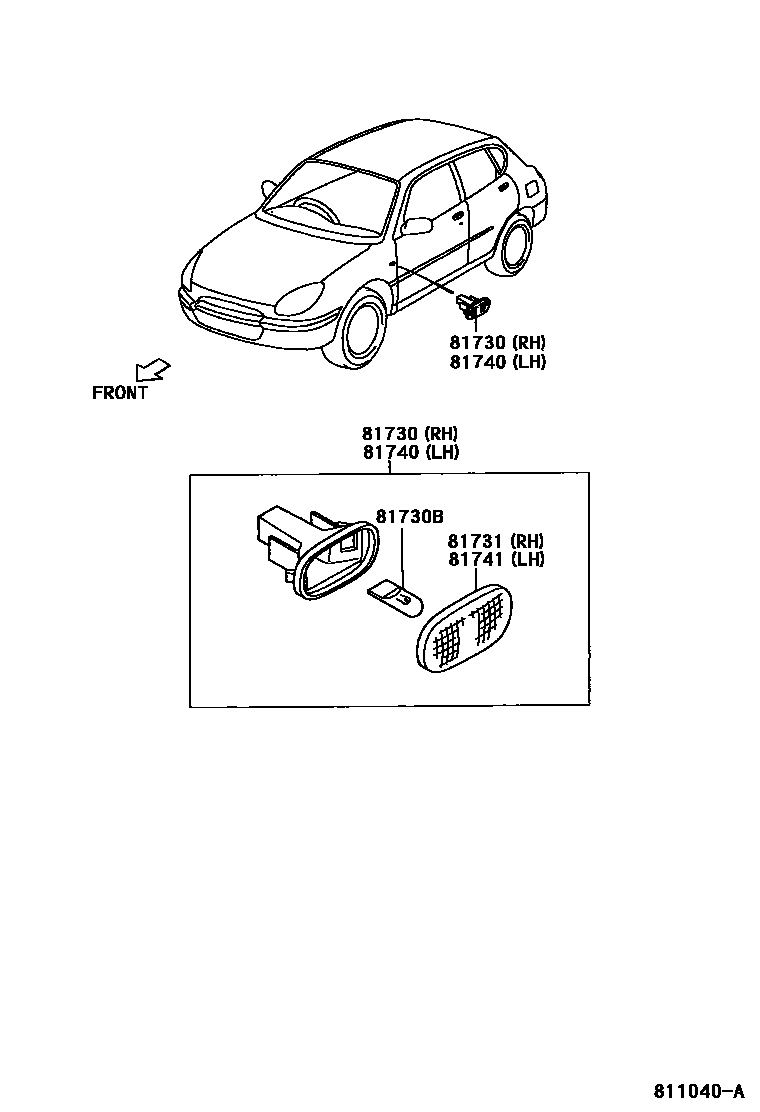

5 parts on this diagram · 1 diagram in section

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP for Toyota DUET

This section contains 5 genuine Toyota parts for the SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP system of the Toyota DUET. Key components include: LAMP ASSY, SIDE TURN SIGNAL, RH, BULB (FOR SIDE TURN SIGNAL LAMP), LENS, SIDE TURN SIGNAL LAMP, RH, LAMP ASSY, SIDE TURN SIGNAL, LH, LENS, SIDE TURN SIGNAL LAMP, LH.
