Toyota DUET — SIDE MOULDING

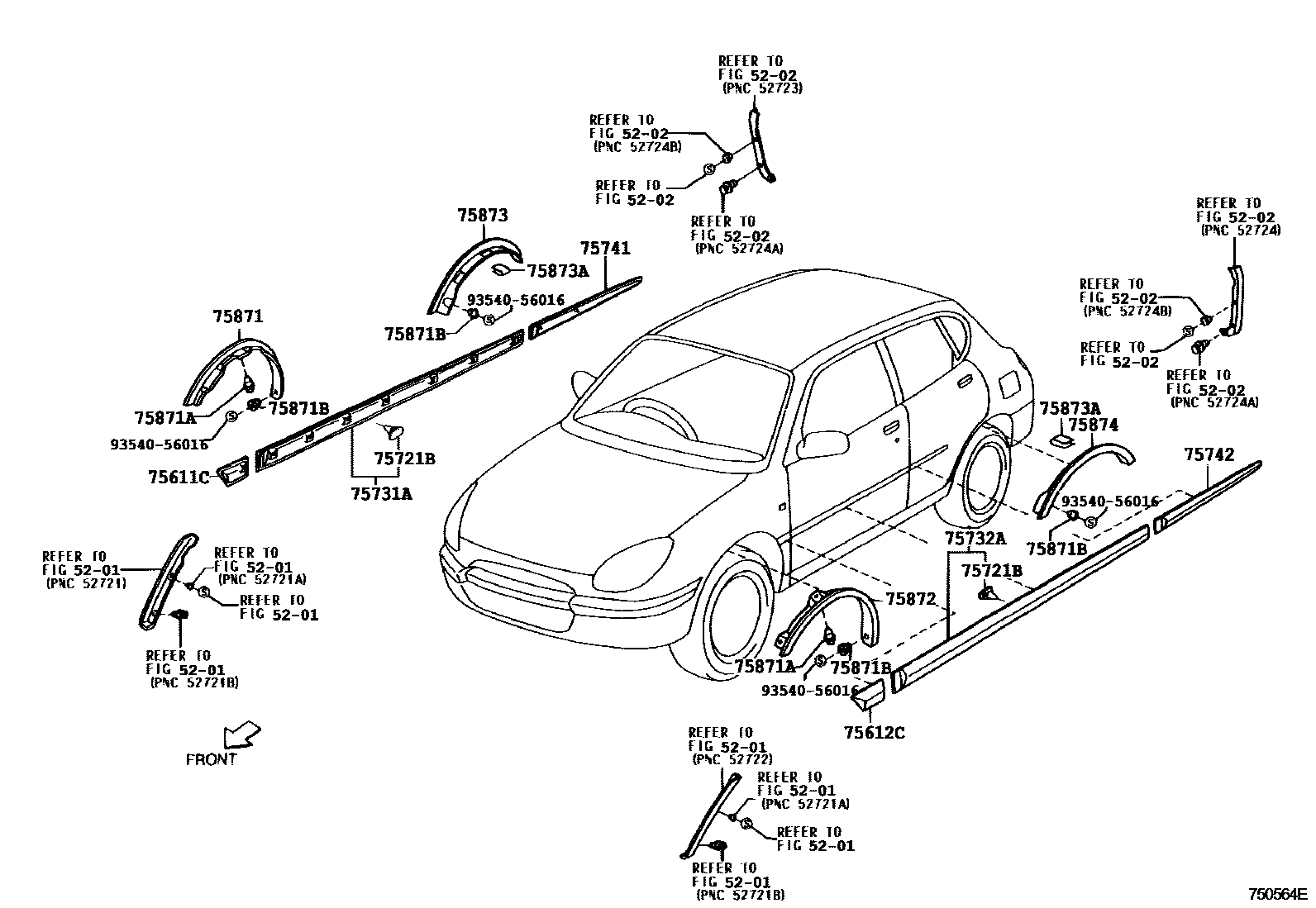

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

75611CMOULDING, FRONT FENDER, OUTSIDE RH

main75611-97201i199809

main75611-97202i199809-200112

75612CMOULDING, FRONT FENDER, OUTSIDE LH

main75612-97201i199809

main75612-97202i199809-200112

75721BCLIP(FOR FRONT DOOR BELT MOULDING SET)

main90044-67344×10i199809

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-97201i199809

main75731-97202i199809-200112

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-97201i199809

main75732-97202i199809-200112

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-97201i199809

main75741-97202i199809-200112

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-97201i199809

main75742-97202i199809-200112

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-97201i199809-200112

75871ACLIP (FOR FRONT FENDER MOULDING NO.1)

main90044-68040-F3×6i199809-200112

DARK GRAY,B37 ,G36 ,G37 ,R27 ,S20 ,S21 ,S25 ,W09 ,W16 ,Y06

75871BCLIP (FOR FRONT FENDER MOULDING NO.2)

main90041-89045×4i199809-200112

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-97201i199809-200112

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-97201i199809-200112

75873ACLIP (FOR QUARTER OPENING MOULDING)

main90044-64665×4i199809-200112

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-97201i199809-200112

9354056016

main93540-56016

17 parts on this diagram · 3 diagrams in section

SIDE MOULDING for Toyota DUET

This section contains 19 genuine Toyota parts for the SIDE MOULDING system of the Toyota DUET. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, MOULDING, FRONT FENDER, OUTSIDE RH.
