Toyota DUET — SHORT BLOCK ASSEMBLY

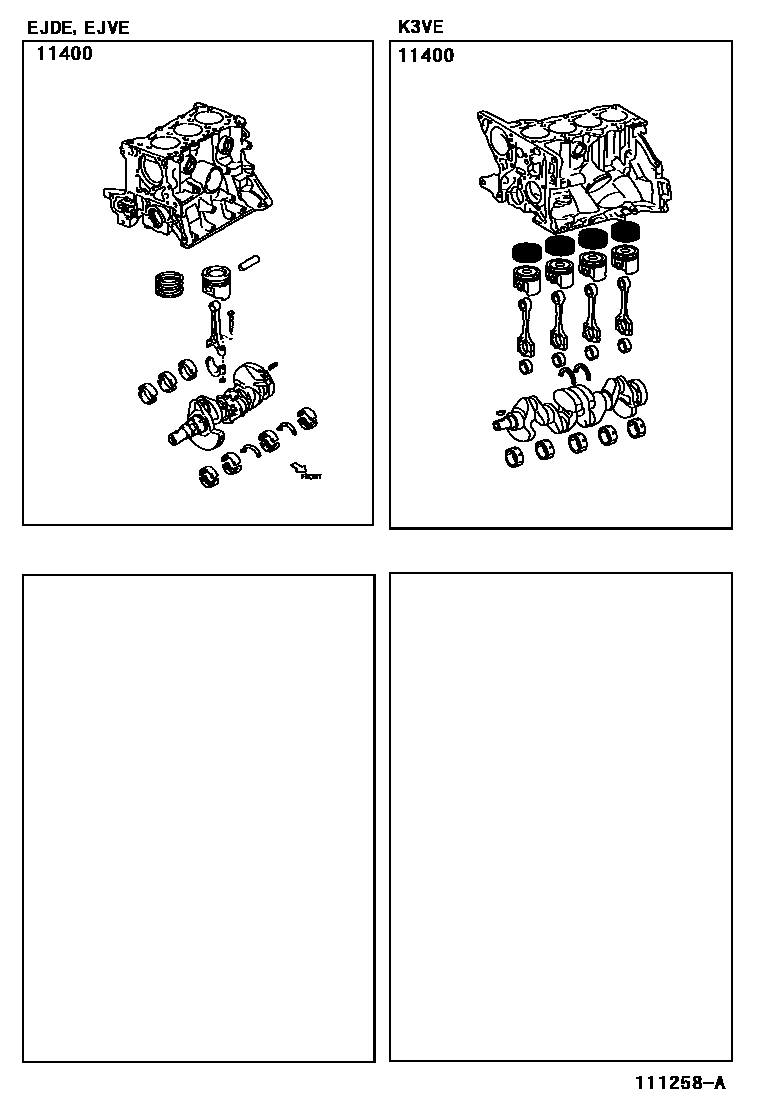

Parts diagram
11400BLOCK ASSY, SHORT
main11400-97207i199809-200208
main11400-97219i200209
main11400-97401i200005-200205
main11400-97402i200112-200205
main11400-97409i200206
main11400-97410i200206

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota DUET

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota DUET. Key components include: BLOCK ASSY, SHORT.
