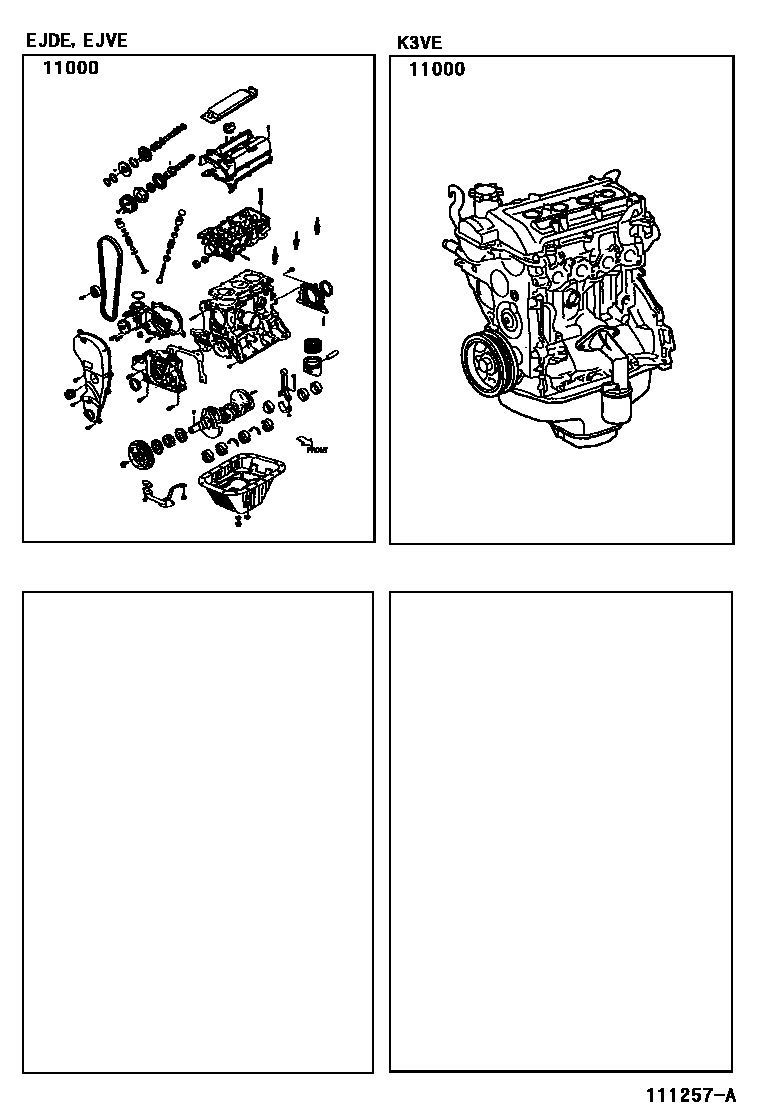

Toyota DUET — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-97207iEJDE..M100,110199809-199810

sub16337-97206

sub17120-97211

sub17177-97202

sub22271-97201

main19000-97214iEJVE..M100,110200005-200209

main19000-97217iEJDE..M100,110200002-200005

sub19000-97233

main19000-97242iEJVE..M100,110200209-200303

main19000-97248iEJVE..M100,110200303

main19000-97401iK3VE..M101,111..VS;K3VE..M101,111..4AT200005

main19000-97402iK3VE..M101,111..V,X200112

sub19000-B1A01

1 parts on this diagram · 1 diagram in section
