Toyota DUET — PARKING BRAKE & CABLE

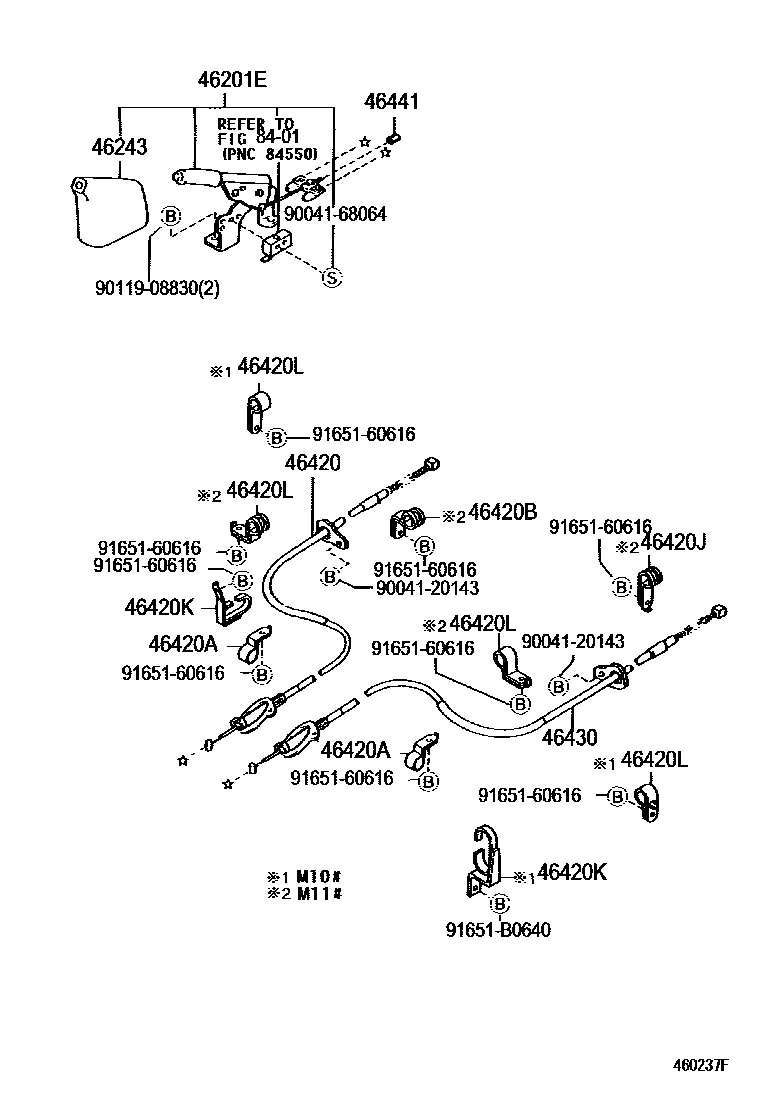

Parts diagram

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-97204-03i199809

DARK GRAY,TRIMS6,S8

main46210-97401-01i200005

46243COVER, PARKING BRAKE LEVER

main46524-97201-01i200005

BLACK,TRIMS6,S8

main46524-97201-03i199809-200005

DARK GRAY,TRIMS6

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-97201i199809

main46420-97202i199809-200112

main46420-97203i200112

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90044-61804×2i199809

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90044-61313i199809

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90044-61808i199809

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46465-97201i199809

main46465-97202i199809

main46465-97203i199809

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main90044-61805×2i199809

main90044-61807×2i199809

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-97201i199809

main46430-97202i199809-200112

main46430-97203i200112

46441NUT, WIRE ADJUSTING, NO.1

main46441-87202i199809

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004120143

main90041-20143

9004168064

main90041-68064

9011908830

main90119-08830

9165160616

main91651-60616

91651B0640

main91651-B0640

16 parts on this diagram · 1 diagram in section

PARKING BRAKE & CABLE for Toyota DUET

This section contains 16 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota DUET. Key components include: LEVER SUB-ASSY, PARKING BRAKE, COVER, PARKING BRAKE LEVER, CABLE ASSY, PARKING BRAKE, NO.2, CLAMP, NO.1(FOR PARKING BRAKE CABLE), CLAMP, NO.2(FOR PARKING BRAKE CABLE).
