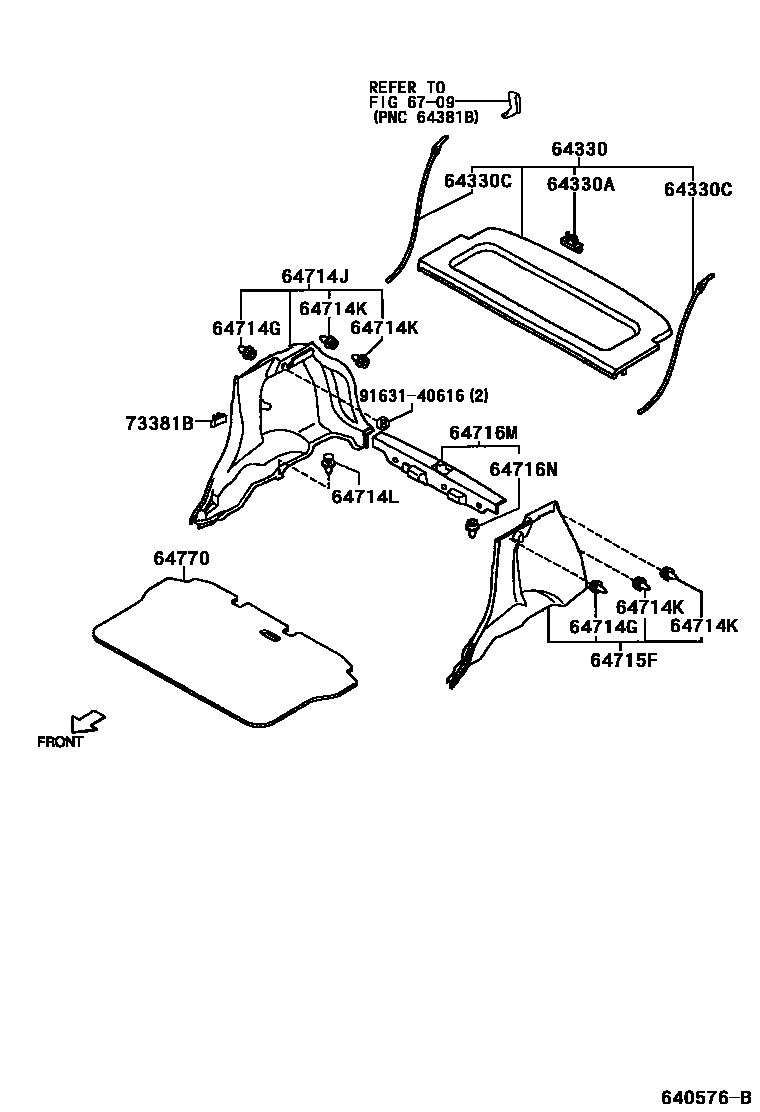

Toyota DUET — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-97201-03i199809

DARK GRAY,TRIMS6,S8

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main64369-87704×2i199809

64330CHOOK(FOR PACKAGE TRAY TRIM PANEL)

main64367-97201×2i199809

64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)

main90044-68284×2i199809

64714JCOVER, DECK SIDE TRIM, RH

main64714-97201-03i199809

DARK GRAY,TRIMS6

main64714-97201-13i200005

D.GRAY,TRIMS8

64714KCLIP(FOR DECK TRIM SIDE COVER)

main90044-68281×4i199809

64714LCLIP(FOR DECK TRIM SIDE COVER RH)

main90044-68040-F3×6i199809

DARK GRAY,TRIMS6

main90044-68040-G3×6i200005

D.GRAY,TRIMS8

64715FCOVER, DECK SIDE TRIM, LH

main64715-97201-03i199809

DARK GRAY,TRIMS6

main64715-97201-13i200005

D.GRAY,TRIMS8

64716MCOVER, DECK TRIM, RH

main64716-97201-03i199809

DARK GRAY,TRIMS6

main64716-97201-13i200005

D.GRAY,TRIMS8

64716NCLIP(FOR DECK TRIM COVER)

main90044-68284×4i199809

64770COVER ASSY, SPARE WHEEL

main64770-97201i199809-200112

main64770-97402i200112

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

73381BHOLDER, REAR SEAT BELT

main73381-87202-13×2i199809

GRAY,TRIMS6

main73381-87202-23×2i200005

D.GRAY,TRIMS8

9163140616

main91631-40616

14 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota DUET

This section contains 14 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota DUET. Key components include: PANEL ASSY, PACKAGE TRAY TRIM, CLIP(FOR PACKAGE TRAY TRIM PANEL), HOOK(FOR PACKAGE TRAY TRIM PANEL), CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER), COVER, DECK SIDE TRIM, RH.
