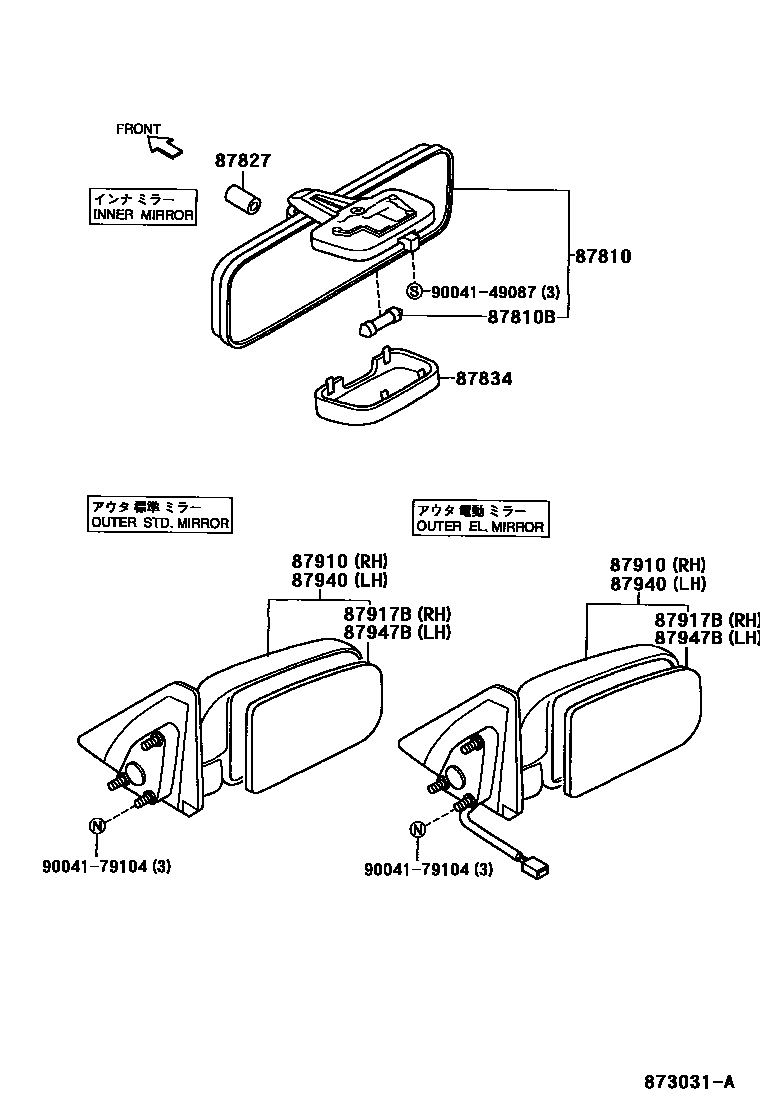

Toyota DUET — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87810BBULB, INNER REAR VIEW MIRROR LAMP
87827ABSORBER, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
COOL SILVER M.,S25
87917BMIRROR, OUTER REAR VIEW, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
COOL SILVER M.,S25
87947BMIRROR, OUTER REAR VIEW, LH
9004149087
main90041-49087
9004179104
main90041-79104
10 parts on this diagram · 1 diagram in section
MIRROR for Toyota DUET
This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota DUET. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
