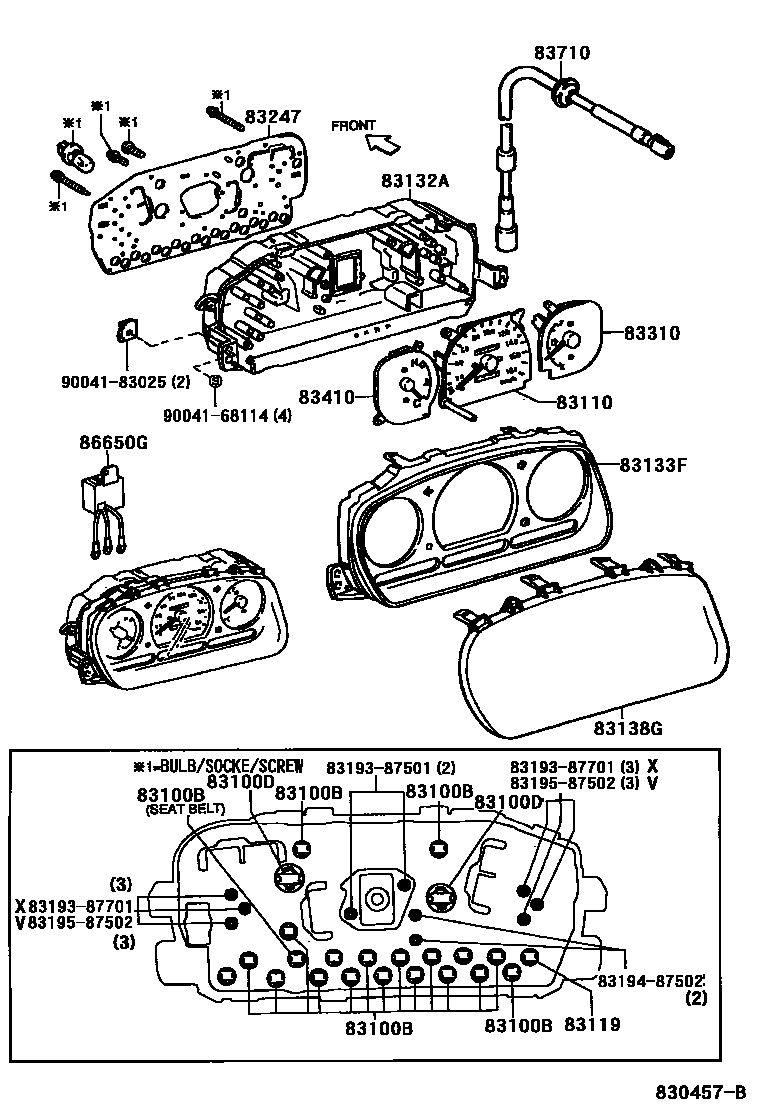

Toyota DUET — METER
83100METER ASSY, COMBINATION
83100BBULB, COMBINATION METER, NO.1
83100DBULB, COMBINATION METER, NO.2
83110SPEEDOMETER ASSY
83119BULB, COMBINATION METER, NO.3
83132ACASE, METER
83133FPLATE, METER
83138GGLASS, COMBINATION METER
83247PLATE, METER CIRCUIT
83310GAGE ASSY, FUEL RECEIVER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1
86650GBUZZER ASSY
8319387501
main83193-87501
8319387701
main83193-87701
8319487502
main83194-87502
8319587502
main83195-87502
9004168114
main90041-68114
9004183025
main90041-83025
19 parts on this diagram · 7 diagrams in section
METER for Toyota DUET
This section contains 24 genuine Toyota parts for the METER system of the Toyota DUET. Key components include: METER ASSY, COMBINATION, BULB, COMBINATION METER, NO.1, BULB, COMBINATION METER, NO.2, SPEEDOMETER ASSY, BULB, COMBINATION METER, NO.3.
