Toyota DUET — MAT & CARPET

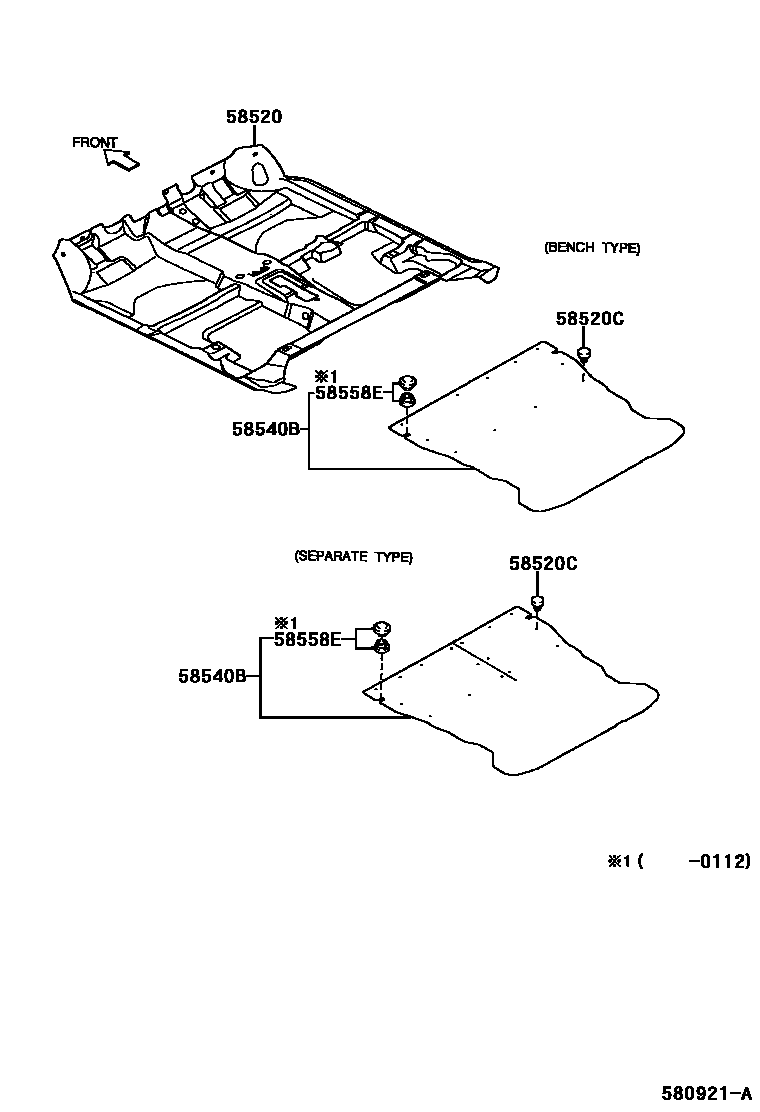

Parts diagram

58520CARPET ASSY, FRONT FLOOR

main58530-97201-03i199809-199904

DARK GRAY,TRIMS6

main58530-97203-03i199809-199904

main58530-97237-03i199904-200005

DARK GRAY,TRIMS6

main58530-97237-13i200005-200112

DARK GRAY,TRIMS6,S8

main58530-97239-03i199904-200005

main58530-97239-13i200005-200112

main58530-97414-03i200005-200112

main58530-97415-03i200005-200112

main58530-97434-03i200112

GRAY,TRIMS6,S8

main58530-97435-03i200112

main58530-97437-03i200112

main58530-97438-03i200112

58520CCLIP(FOR FRONT FLOOR CARPET)

main90044-68028-C3×25i199809-200112

GRAY,TRIMS6,S8

main90044-68058-03×6i200203

main90044-68283-03×6i200201-200202

58540BCARPET ASSY, FRONT FLOOR, REAR NO.1

main58570-97201-03i199809-200005

DARK GRAY,TRIMS6

main58570-97201-13i200005-200112

DARK GRAY,TRIMS6,S8

main58570-97202-03i199809-200005

DARK GRAY,TRIMS6

main58570-97202-13i200005-200112

main58570-97408-03i200112

GRAY,TRIMS6,S8

main58570-97409-03i200112

GRAY,TRIMS6,S8

58558EFASTENER, PILE

main58558-87501-23×2i199809-200112

SHADOW GRAY,TRIMS6,S8

4 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota DUET

This section contains 4 genuine Toyota parts for the MAT & CARPET system of the Toyota DUET. Key components include: CARPET ASSY, FRONT FLOOR, CLIP(FOR FRONT FLOOR CARPET), CARPET ASSY, FRONT FLOOR, REAR NO.1, FASTENER, PILE.
