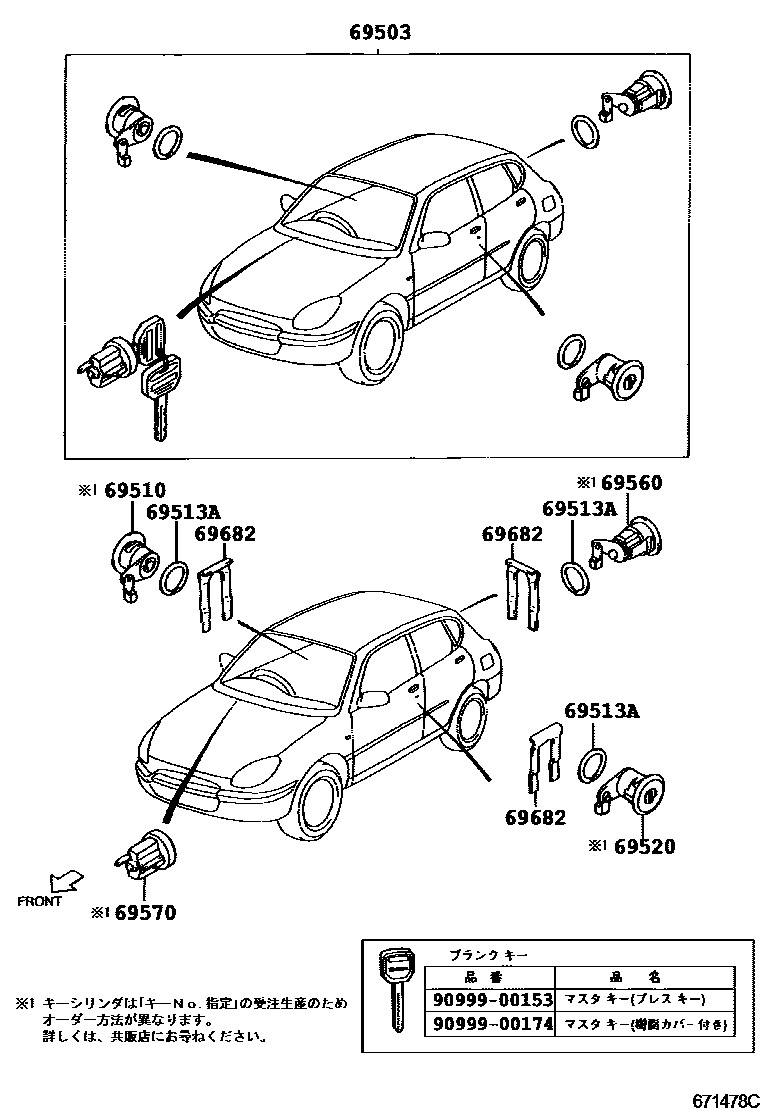

Toyota DUET — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-97214i199809

main69005-97402i200012

main69503-97214i200005-200112

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-97201i199809

69513APAD, DOOR CYLINDER

main69513-87201×3i199809

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-97201i199809

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-97201i199809

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-87710i199809-199904

69682RETAINER, LOCK CYLINDER

main69682-87201×3i199809-199904

main69682-97202×2i199904

9099900153

main90999-00153

9099900174

main90999-00174

9 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota DUET

This section contains 13 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota DUET. Key components include: STEERING COLUMN & SHAFT, CYLINDER SET, LOCK, CYLINDER ASSY, FRONT DOOR LOCK, RH, PAD, DOOR CYLINDER, CYLINDER ASSY, FRONT DOOR LOCK, LH.
