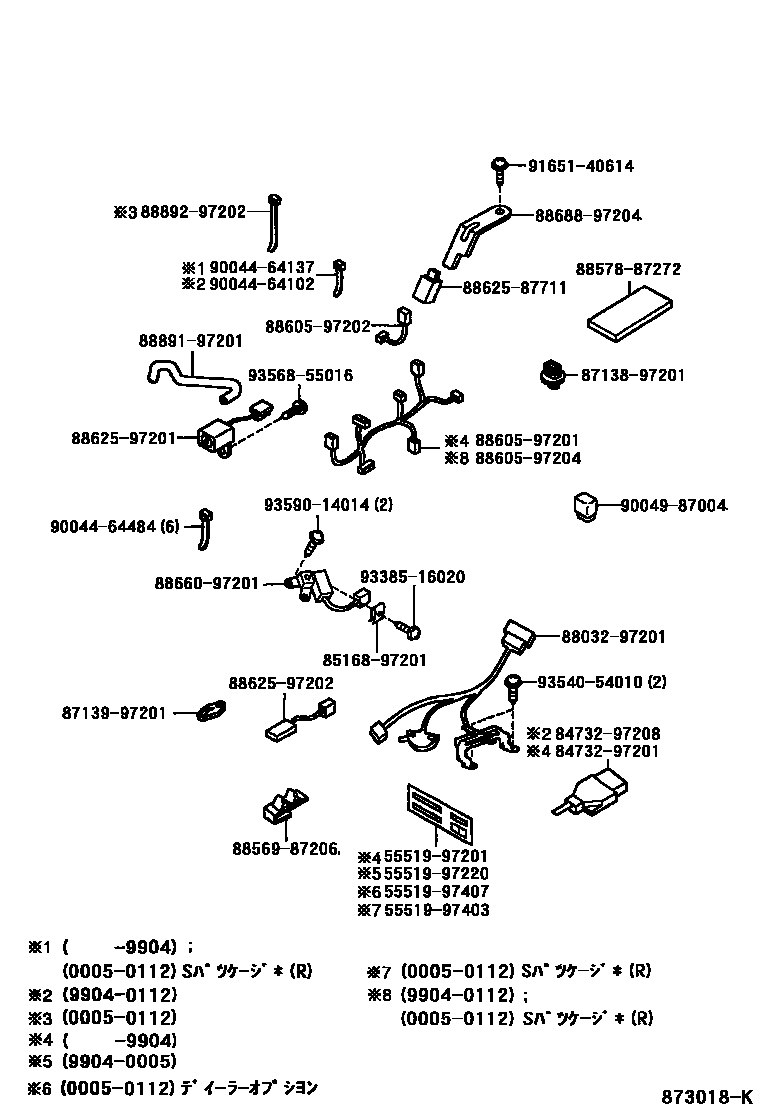

Toyota DUET — HEATING & AIR CONDITIONING - SET
5551997201PLATE, HEATER CONTROL NAME
main55519-97201
5551997220PLATE, HEATER CONTROL NAME
main55519-97220
5551997403PLATE, HEATER CONTROL NAME
main55519-97403
5551997407PLATE, HEATER CONTROL NAME
main55519-97407
8473297201RETAINER, HEATER BLOWER SWITCH LEVER
main84732-97201
8473297208RETAINER, HEATER BLOWER SWITCH LEVER
main84732-97208
8516897201NUT, WINDSHIELD WIPER LINK PIVOT
main85168-97201
8713897201RESISTOR, HEATER BLOWER
main87138-97201
8713997201PACKING, BLOWER HEATER RESISTOR
main87139-97201
8803297201SWITCH, HEATER CONTROL VOLUME
main88032-97201
8856987206CLAMP (FOR COOLER RELAY)
main88569-87206
8857887272PAKING, COOLER AIR DUCT
main88578-87272
8860597201HARNESS SUB-ASSY, COOLER WIRING, NO.1
main88605-97201
8860597202HARNESS SUB-ASSY, COOLER WIRING, NO.1
main88605-97202
8860597204HARNESS SUB-ASSY, COOLER WIRING, NO.1
main88605-97204
8862587711THERMISTOR, COOLER, NO.1
main88625-87711
8862597201THERMISTOR, COOLER, NO.1
main88625-97201
8862597202THERMISTOR, COOLER, NO.1
main88625-97202
8866097201PULLEY ASSY, COOLER IDLER
main88660-97201
8868897204BRACKET, COOLER DIAPHRAGM
main88688-97204
8889197201PACKING (FOR COOLER)
main88891-97201
8889297202BRACKET, COOLER EVAPORATOR MOUNTING
main88892-97202
9004464102
main90044-64102
9004464137
main90044-64137
9004464484
main90044-64484
9004987004
main90049-87004
9165140614
main91651-40614
9338516020
main93385-16020
9354054010
main93540-54010
9356855016
main93568-55016
9359014014
main93590-14014
31 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - SET for Toyota DUET
This section contains 31 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota DUET. Key components include: PLATE, HEATER CONTROL NAME, RETAINER, HEATER BLOWER SWITCH LEVER.
