Toyota DUET — HEATING & AIR CONDITIONING - COMPRESSOR

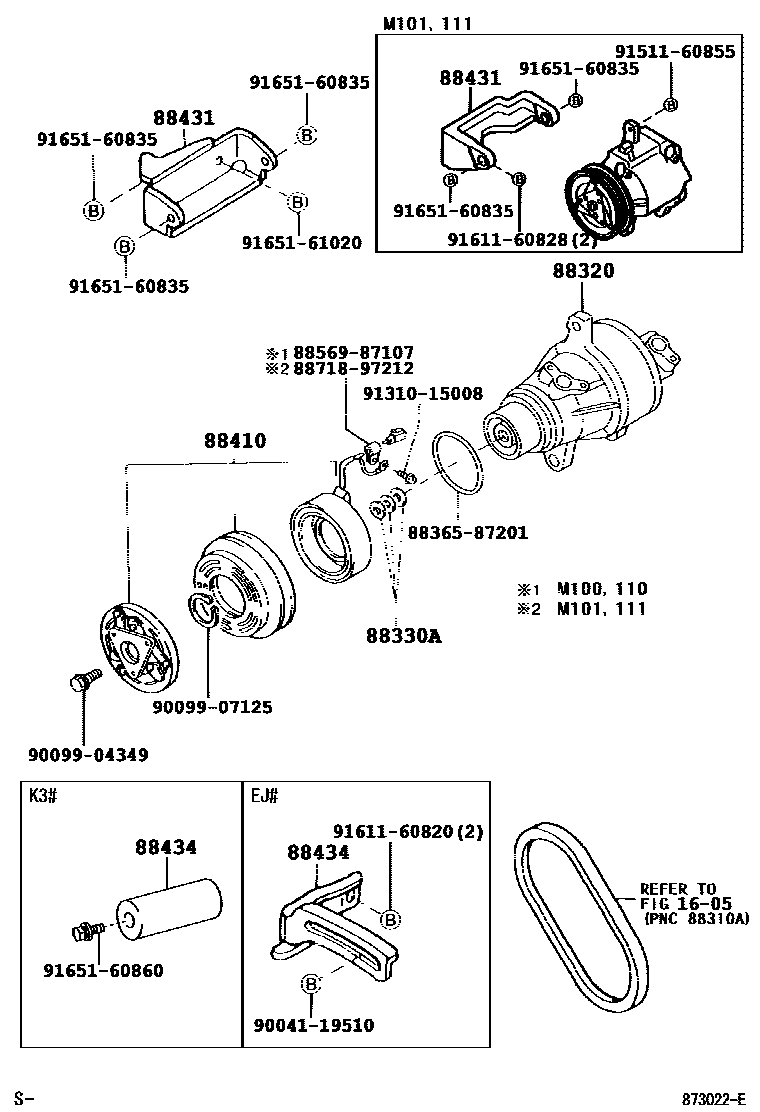

Parts diagram

1605V-BELT

→ Go to FIG 16-05

88320COMPRESSOR ASSY, COOLER

main88320-97201i199809-200207

main88320-97208i200208

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704i199809

main88318-87705i199809

main88318-87706i199809

88410CLUTCH ASSY, MAGNET

main88410-97201i199809-200207

main88410-97212i200208

main88410-97213i200208

main88410-97401i200005-200207

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-97201i199809

main88431-97402i200005

88434BRACKET, COMPRESSOR MOUNTING, NO.4

main88434-97201i199809

main88434-97401i200005

8836587201RING, SNAP

main88365-87201

8856987107CLAMP (FOR COOLER RELAY)

main88569-87107

8871897212PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-97212

9004119510

main90041-19510

9009904349

main90099-04349

9009907125

main90099-07125

9131015008

main91310-15008

9151160855

main91511-60855

9161160820

main91611-60820

9161160828

main91611-60828

9165160835

main91651-60835

9165160860

main91651-60860

9165161020

main91651-61020

19 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota DUET

This section contains 19 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota DUET. Key components include: V-BELT, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COMPRESSOR MOUNTING, NO.1.
