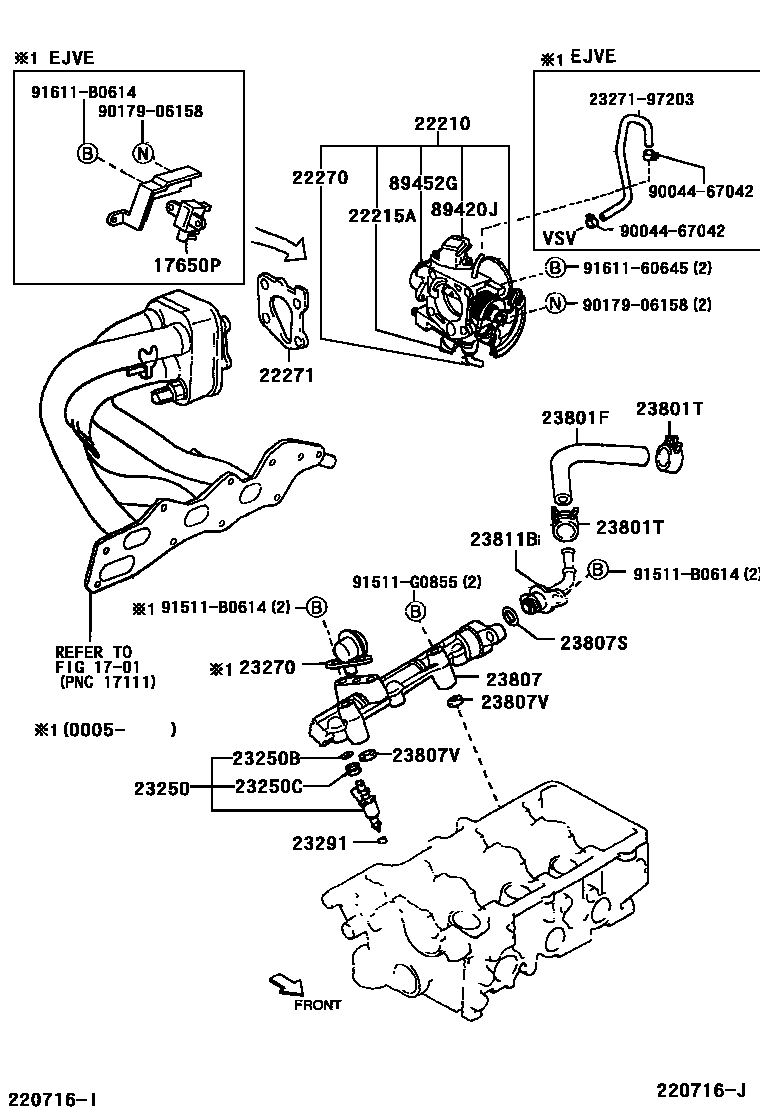

Toyota DUET — FUEL INJECTION SYSTEM
1701MANIFOLD
17650PVALVE, VACUUM SWITCHING
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22215AGASKET, IDLE SPEED CONTROL VALVE
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23291INSULATOR, INJECTOR VIBRATION
23801FHOSE, FUEL, NO.1
23801TCLAMP OR CLIP, FUEL HOSE(FOR EFI)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807SRING, O(FOR FUEL DELIVARY PIPE)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23811BPIPE, FUEL, NO.1
89420JSENSOR ASSY, VACUUM(FOR THROTTLE BODY)
2327197203VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
main23271-97203
9004467042
main90044-67042
9017906158
main90179-06158
91511B0614
main91511-B0614
91511G0855
main91511-G0855
9161160645
main91611-60645
91611B0614
main91611-B0614
27 parts on this diagram · 3 diagrams in section
FUEL INJECTION SYSTEM for Toyota DUET
This section contains 41 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota DUET. Key components include: MANIFOLD, VALVE, VACUUM SWITCHING, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY COVER, GASKET, IDLE SPEED CONTROL VALVE.
