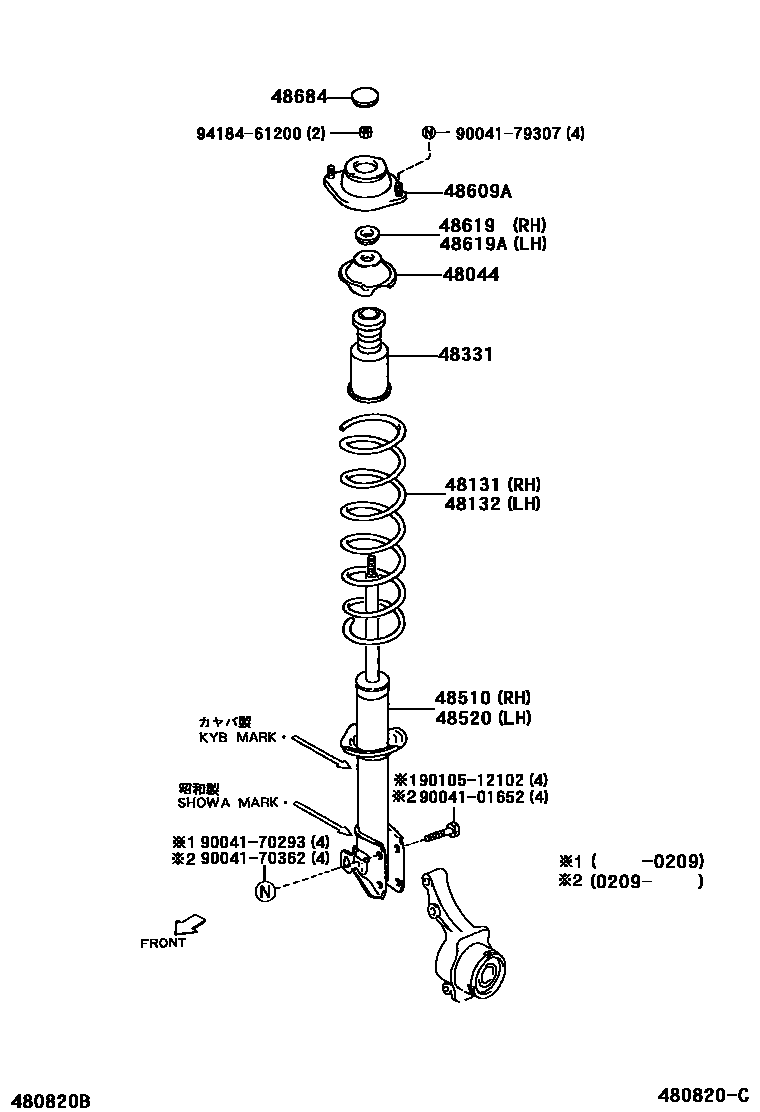

Toyota DUET — FRONT SPRING & SHOCK ABSORBER
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48331BUMPER, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48619ABEARING, STRUT MOUNTING, LH
48684COVER, BEARING DUST
9004101652
main90041-01652
9004170293
main90041-70293
9004170362
main90041-70362
9004179307
main90041-79307
9010512102
main90105-12102
9418461200
main94184-61200
16 parts on this diagram · 2 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota DUET
This section contains 23 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota DUET. Key components include: SEAT SUB-ASSY, FRONT SPRING, NO.1, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, BUMPER, FRONT SPRING, NO.1, ABSORBER ASSY, SHOCK, FRONT RH.
