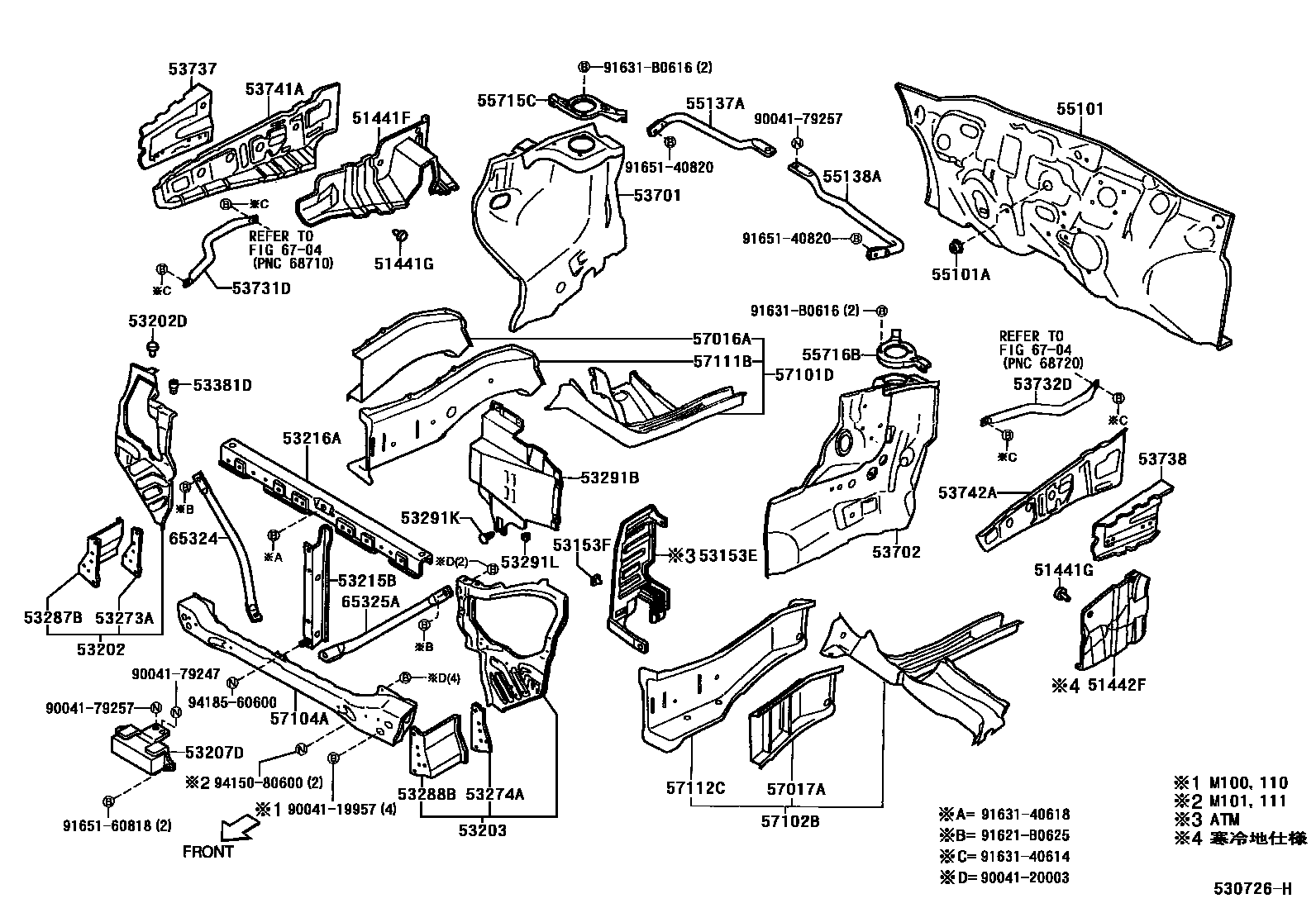

Toyota DUET — FRONT FENDER APRON & DASH PANEL
51441FCOVER, ENGINE UNDER, RH
51441GCLIP, ENGINE UNDER COVER
51442FCOVER, ENGINE UNDER, LH
53153EGUIDE, FRONT SIDE AIR
53153FCLIP, FRONT SIDE AIR GUIDE
BLACK,B37 ,R27 ,S20 ,S21 ,W09 ,W16 ,Y06
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53215BSUPPORT, HOOD LOCK
53216ASUPPORT, RADIATOR, UPPER
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53291BPLATE, RADIATOR COVER
53291KCLIP, RADIATOR COVER PLATE
BLACK,B37 ,B52 ,G36 ,G37 ,R27 ,R29 ,S20 ,S21 ,S25 ,S26 ,T16 ,W09 ,W16 ,Y06
53291LCLAMP, RADIATOR COVER PLATE
53381DBUMPER, HOOD TO FRONT SHROUD
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53741APLATE, FENDER APRON REINFORCE, RH
53742APLATE, FRONT FENDER APRON REINFORCEMENT
55101PANEL SUB-ASSY, DASH
55101APLUG, HOLE, NO.1(FOR DASH PANEL)
55137ABRACE, DASH TO FRAME, RH
55138ABRACE, DASH TO FRAME, LH
55715CBRACE, COWL TOP TO APRON, RH
55716BBRACE, COWL TOP TO APRON, LH
57016AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57101DMEMBER SUB-ASSY, FRONT SIDE, RH
57102BMEMBER SUB-ASSY, FRONT SIDE, LH
57104AMEMBER SUB-ASSY, FRONT CROSS
65324MEMBER, FRONT GUARD, NO.1
65325AMEMBER, FRONT GUARD, NO.2
6704FRONT DOOR WINDOW REGULATOR & HINGE
9004119957
main90041-19957
9004120003
main90041-20003
9004179247
main90041-79247
9004179257
main90041-79257
91621B0625
main91621-B0625
9163140614
main91631-40614
9163140618
main91631-40618
91631B0616
main91631-B0616
9165140820
main91651-40820
9165160818
main91651-60818
9415080600
main94150-80600
9418560600
main94185-60600
55 parts on this diagram · 2 diagrams in section
FRONT FENDER APRON & DASH PANEL for Toyota DUET
This section contains 67 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota DUET. Key components include: COVER, ENGINE UNDER, RH, CLIP, ENGINE UNDER COVER, COVER, ENGINE UNDER, LH, BRACKET, FRONT BUMPER SIDE MOUNTING, RH, BRACKET, FRONT BUMPER SIDE MOUNTING, LH.
