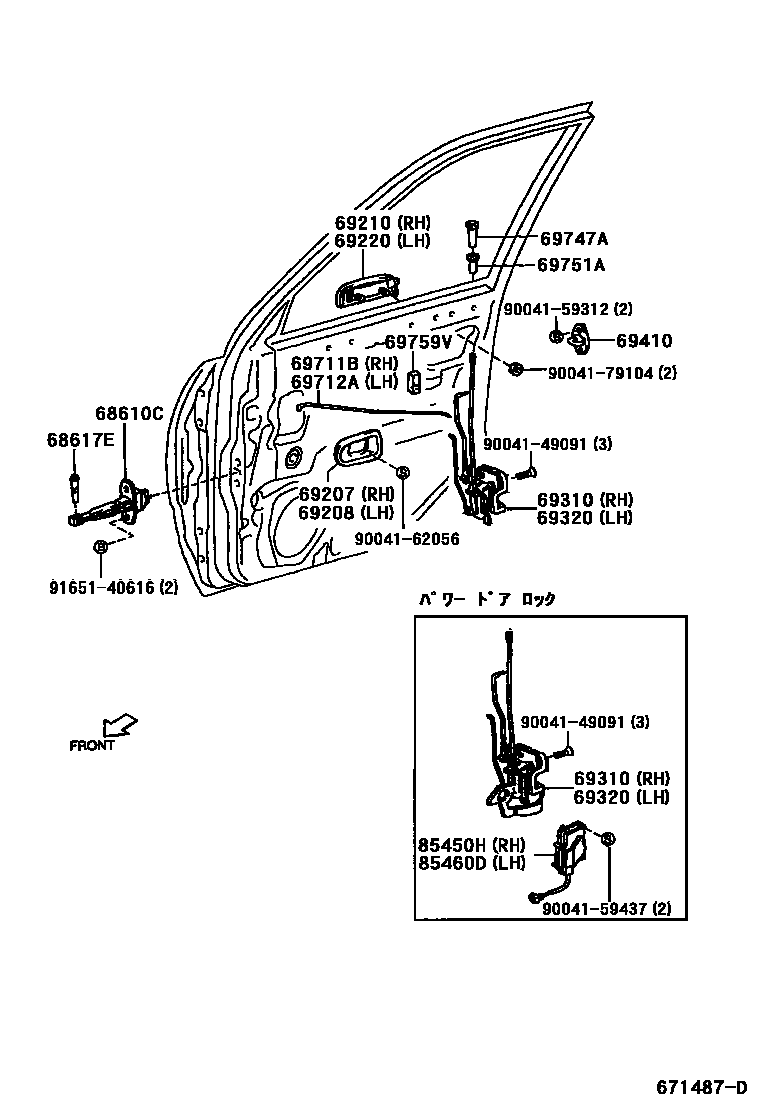

Toyota DUET — FRONT DOOR LOCK & HANDLE
68610CCHECK ASSY, FRONT DOOR
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DARK GRAY,TRIMS6,S8
DARK GRAY,TRIMS6,S8
LT.GREENISH GRAY,TRIMS8
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DARK GRAY,TRIMS6,S8
LT.GREENISH GRAY,TRIMS8
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
RED M.M.,R27
WARM SILVER ME.,S20
WHITE,W09
MUSTARD YELLOW,Y06
GRAYISH SEPIA ME.,S21
PEARL WHITE,W16
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
RED M.M.,R27
WARM SILVER ME.,S20
MUSTARD YELLOW,Y06
GRAYISH SEPIA ME.,S21
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
DARK GRAY,TRIMS6,S8
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
GRAY,TRIMS6,S8
69759VSILENCER, FRONT DOOR LOCK LINK
85450HMOTOR ASSY, DOOR CONTROL, FRONT RH
85460DMOTOR ASSY, DOOR CONTROL, FRONT LH
9004149091
main90041-49091
9004159312
main90041-59312
9004159437
main90041-59437
9004162056
main90041-62056
9004179104
main90041-79104
9165140616
main91651-40616
22 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota DUET
This section contains 22 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota DUET. Key components include: CHECK ASSY, FRONT DOOR, PIN, FRONT DOOR CHECK, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
