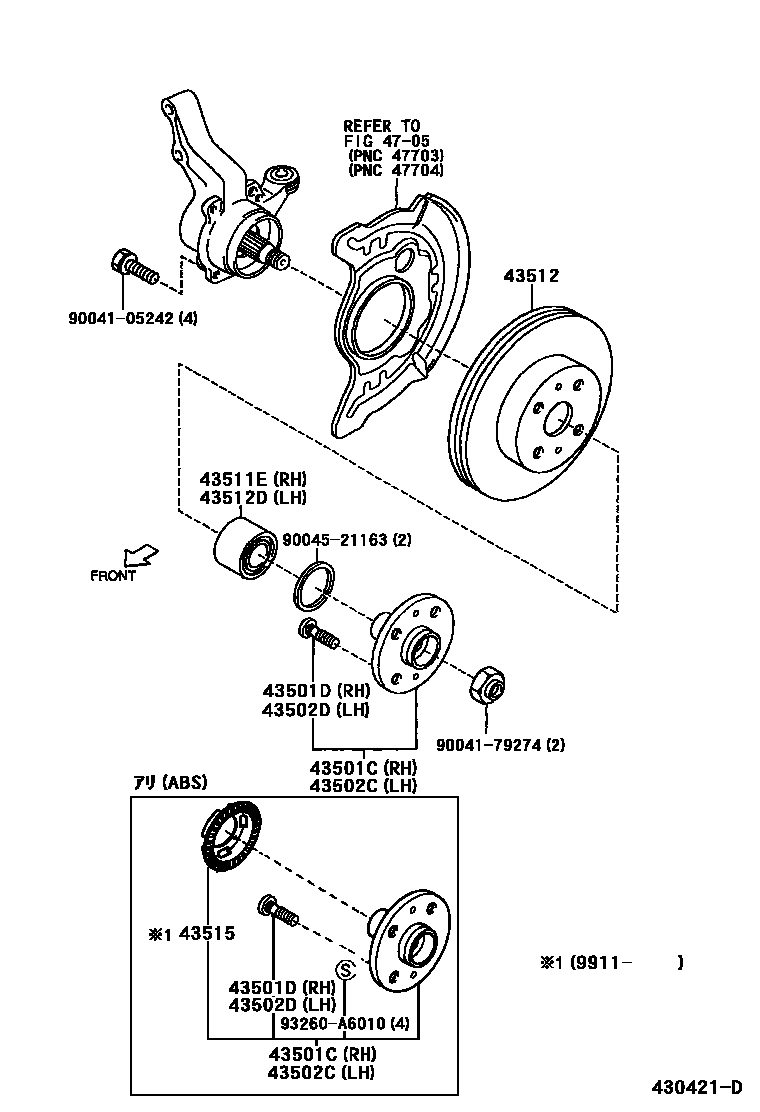

Toyota DUET — FRONT AXLE HUB
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
43511EBEARING (FOR FRONT AXLE HUB RH)
43512DISC, FRONT
43512DBEARING (FOR FRONT AXLE HUB LH)
43515ROTOR, SKID CONTROL, FRONT
4705FRONT DISC BRAKE CALIPER & DUST COVER
9004105242
main90041-05242
9004179274
main90041-79274
9004521163
main90045-21163
93260A6010
main93260-A6010
13 parts on this diagram · 1 diagram in section
FRONT AXLE HUB for Toyota DUET
This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota DUET. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH), BEARING (FOR FRONT AXLE HUB RH).
