Toyota DUET — FRAME

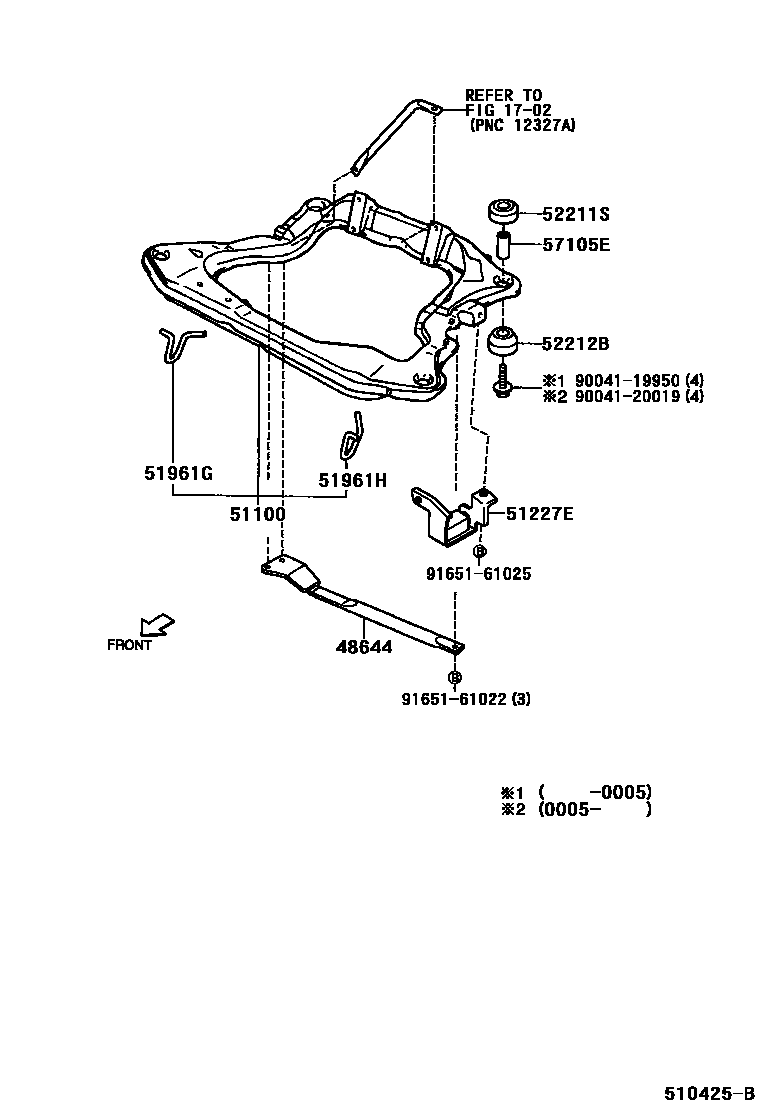

Parts diagram

1702EXHAUST PIPE

→ Go to FIG 17-02

48644ROD, LOWER ARM BRACKET CONNECTING

main48644-97201i199809

main48644-97202i199809

51100FRAME ASSY

main51001-97202i199809-200112

main51001-97401i200005

main51001-97403i200112

51227EDAMPER, FRONT SUSPENSHION MEMBER DYNAMIC

main51227-97201i199809

main51227-97401i200005

51961GHOOK, FRONT RH

main51961-97201i199809

main51961-97401i200005

51961HHOOK, FRONT LH

main51961-97202i199809

main51961-97402i200005

52211SCUSHION, FRONT FRAME, UPPER

main52211-97202i199809

52212BCUSHION, FRONT FRAME, LOWER

main52212-97202i199809

57105ESPACER SUB-ASSY, SUSPENSHION MEMBER

main57105-97201i199809

9004119950

main90041-19950

9004120019

main90041-20019

9165161022

main91651-61022

9165161025

main91651-61025

13 parts on this diagram · 1 diagram in section

FRAME for Toyota DUET

This section contains 13 genuine Toyota parts for the FRAME system of the Toyota DUET. Key components include: EXHAUST PIPE, ROD, LOWER ARM BRACKET CONNECTING, FRAME ASSY, DAMPER, FRONT SUSPENSHION MEMBER DYNAMIC, HOOK, FRONT RH.
