Toyota DUET — FOG LAMP

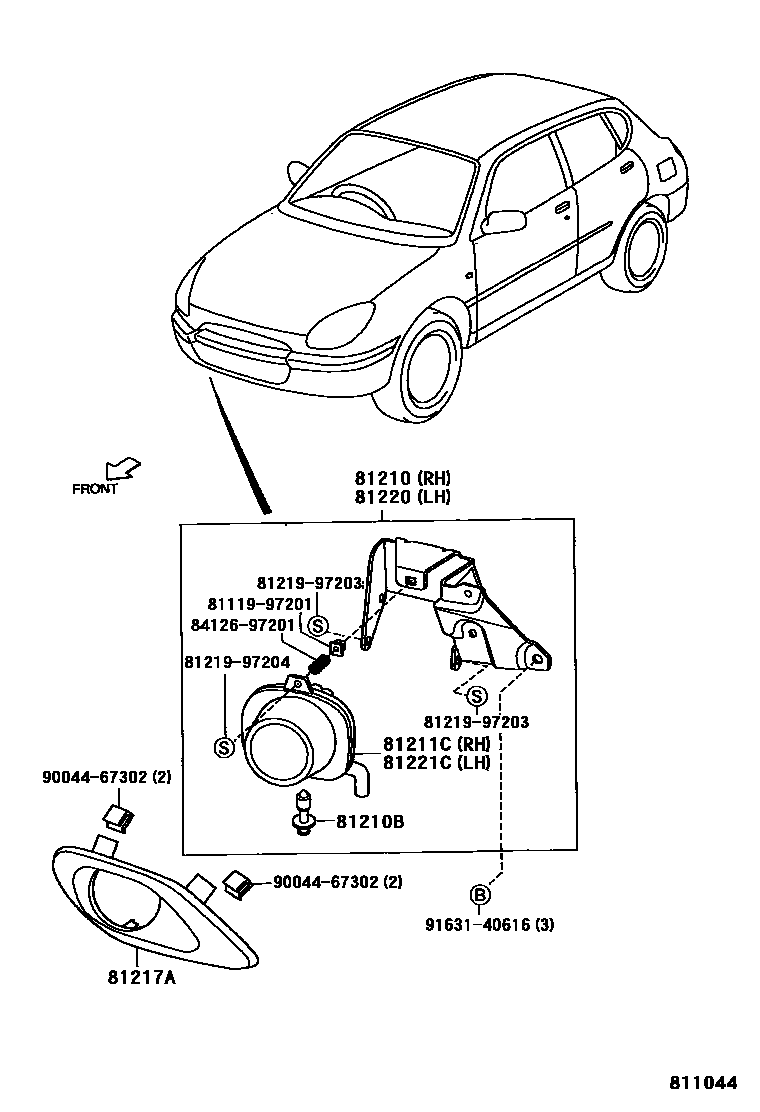

Parts diagram

81210LAMP ASSY, FOG

main81210-97201i199809-199904

main81210-97213i199812-200005

main81210-97403i200005-200112

81210BBULB, FOG LAMP

main84999-97201×2i199904-200005

main90049-51011×2i199809-199904

main90981-13018×2i200005-200112

81211CLAMP UNIT, FOG LAMP, RH

main81211-97201i199809-199904

main81211-97203i199904-200005

main81211-97403i200005-200112

81217AGUARD, FOG LAMP

main81227-97201-02i199809-199904

main81227-97201-03i199809-199904

main81227-97201-04i199809-199904

main81227-97201-08i199809-199904

main81227-97201-09i199809-199904

main81227-97201-13i199809-199904

main81227-97202-02i199809-199904

main81227-97202-03i199809-199904

main81227-97202-04i199809-199904

main81227-97202-08i199809-199904

main81227-97202-09i199809-199904

main81227-97202-13i199809-199904

81220LAMP ASSY, FOG, LH

main81220-97201i199809-199904

main81220-97208i199812-200005

main81220-97403i200005-200112

81221CLAMP UNIT, FOG LAMP, LH

main81211-97201i199809-199904

main81211-97204i199812-200005

main81221-97403i200005-200112

8111997201SCREW, HEADLAMP

main81119-97201

8121997203BOLT, FOG LAMP

main81219-97203

8121997204BOLT, FOG LAMP

main81219-97204

8412697201SPRING

main84126-97201

9004467302

main90044-67302

9163140616

main91631-40616

12 parts on this diagram · 3 diagrams in section

FOG LAMP for Toyota DUET

This section contains 20 genuine Toyota parts for the FOG LAMP system of the Toyota DUET. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, COVER, FOG LAMP, SOCKET & WIRE, FOG LAMP.
