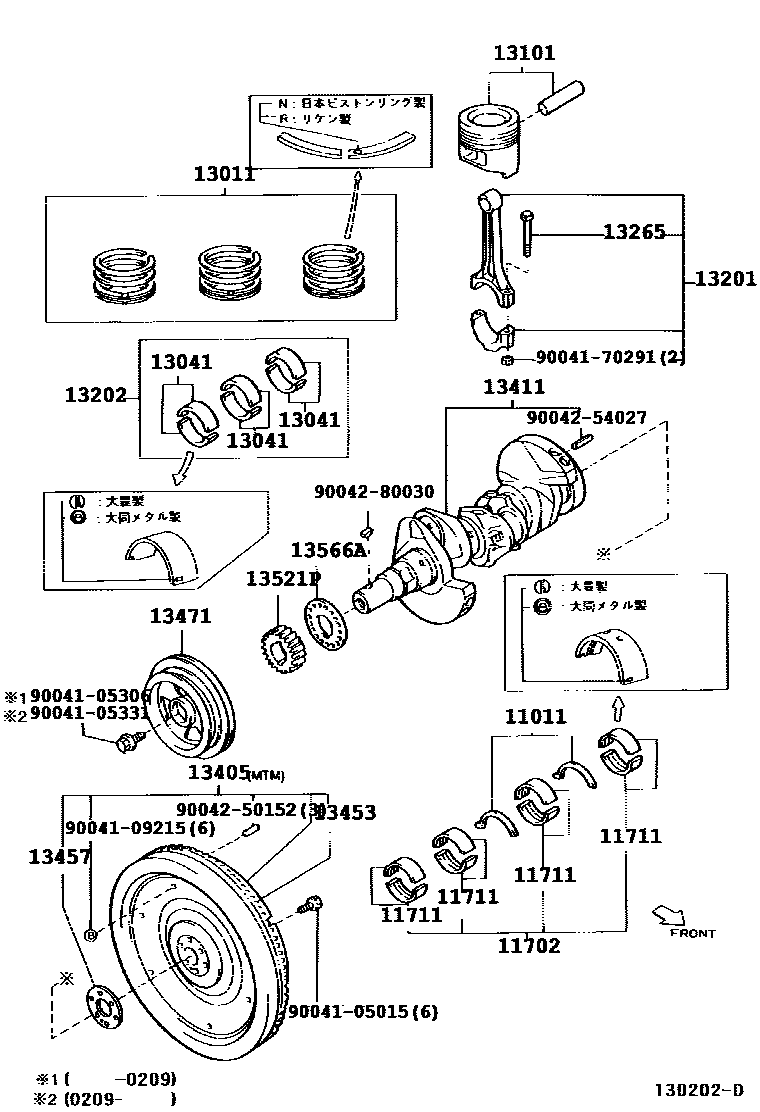

Toyota DUET — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11702BEARING SET, CRANKSHAFT
11711BEARING, CRANKSHAFT
13011RING SET, PISTON
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
13457RING, FLYWHEEL SPACER
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
9004105015
main90041-05015
9004105306
main90041-05306
9004105331
main90041-05331
9004109215
main90041-09215
9004170291
main90041-70291
9004250152
main90042-50152
9004254027
main90042-54027
9004280030
main90042-80030
25 parts on this diagram · 2 diagrams in section
CRANKSHAFT & PISTON for Toyota DUET
This section contains 31 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota DUET. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON.
