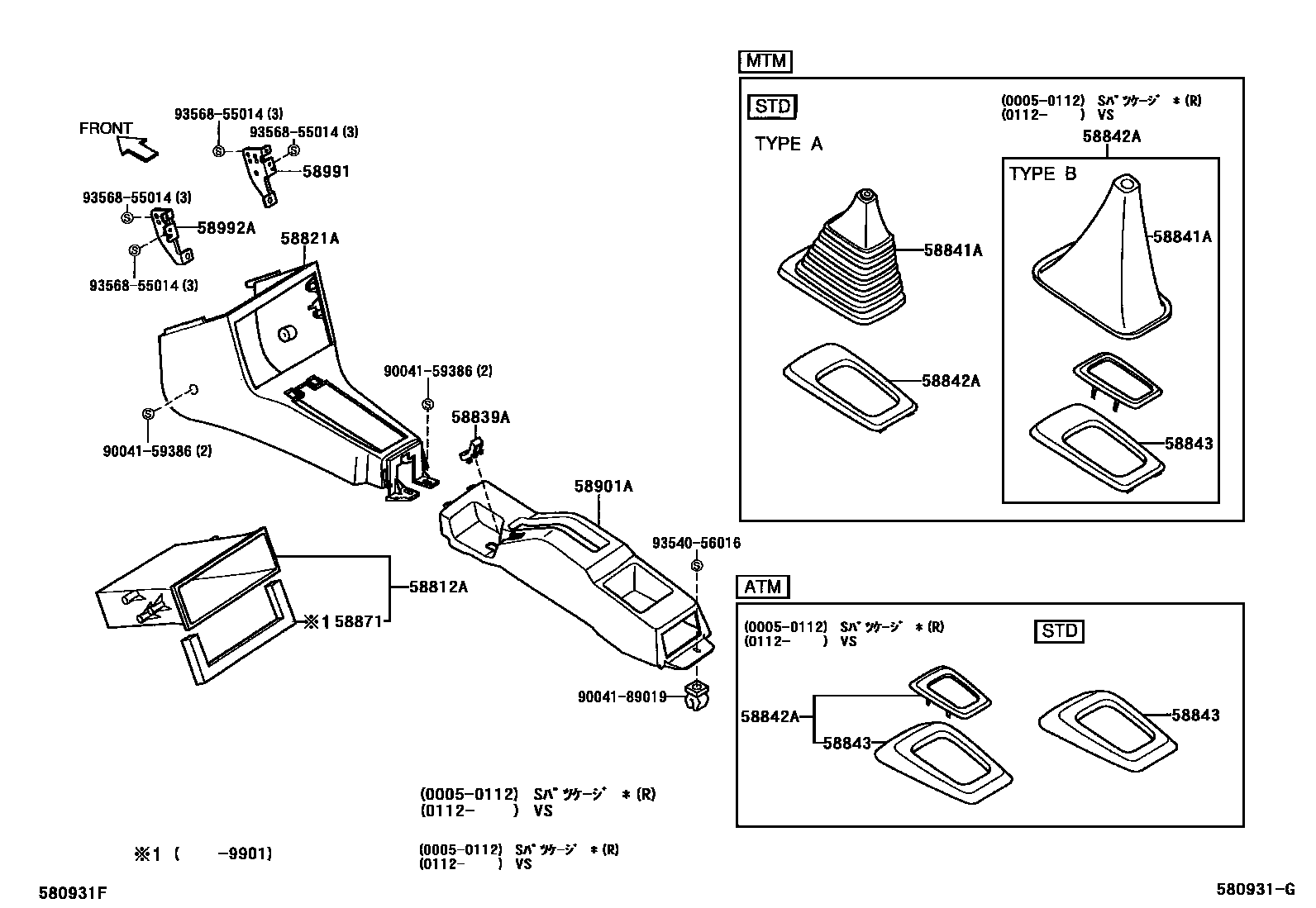

Toyota DUET — CONSOLE BOX & BRACKET

58812ABOX, CONSOLE, LOWER

main58812-97201iM100,110199809-199901

main58812-97202iM100,110199902-200005

main58812-97202-01iM10#,11#200005

BLACK,TRIMS6

main58812-97202-03iM10#,11#200005

LIGHT GREENISH GRAY,TRIMS8

58821APANEL, CONSOLE

main58821-97201-03iM10#,11#199809

DARK GRAY,TRIMS6

main58821-97201-13iM10#,11#200005

LIGHT GREENISH GRAY,TRIMS8

58839ACOVER, CONSOLE BOX HOLE

main58839-97201-03iM10#,11#199809

DARK GRAY,TRIMS6

main58839-97201-23iM10#,11#200005

LIGHT GREENISH GRAY,TRIMS8

58841ACOVER, SHIFTING HOLE

main58808-97403-03iM101,111..VS200005-200112

main58841-97201-03iM10#,11#..5F..(V,X)199809

main58841-97201-13iM10#,11#..5F..(V,X)200005

58842AFRAME, SHIFTING HOLE

main58840-97401-03iM101,111..5F..VS200112

main58840-97402-03iM101,111..V200005-200112

main58842-97201iM10#,11#..5F..(V,X)200112

58843BEZEL, SHIFTING HOLE

main58843-97201-03iM10#,11#..ATM..(V,X)199809

DARK GRAY,TRIMS6

main58843-97201-13iM10#,11#..ATM..(V,X)200005

LIGHT GREENISH GRAY,TRIMS8

main58843-97401-03iM101,111..4ATS..VS200112

DARK GRAY,TRIMS6

main58843-97402-03iM101,111..5F..VS200112

DARK GRAY,TRIMS6

58871CUSHION, CONSOLE BOX

main58871-97202iM100,110199809-199901

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-97201-03iM10#,11#..V,VS200005-200112

DARK GRAY,TRIMS6

main58911-97201-23iM10#,11#..V,VS200005-200112

LIGHT GREENISH GRAY,TRIMS8

main58911-97202-03iM100,110..LVVT;M100,110..X..WVVT199809-200112

main58911-97202-13iM111..VS;M100,110..V200005-200112

LIGHT GREENISH GRAY,TRIMS8

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-97201iM10#,11#199809

58992ABRACKET, CONSOLE BOX MOUNTING, UPR LH

main58992-97201iM10#,11#199809

9004159386

main90041-59386

9004189019

main90041-89019

9354056016

main93540-56016

9356855014

main93568-55014

14 parts on this diagram · 1 diagram in section
