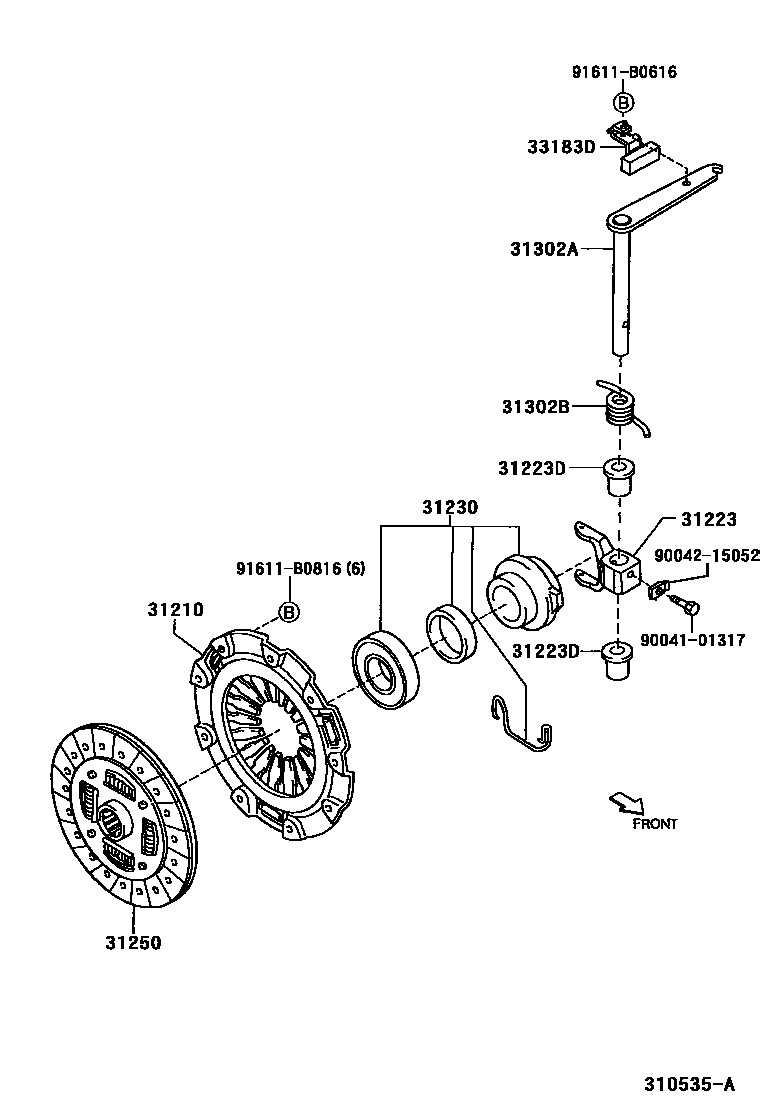

Toyota DUET — CLUTCH & RELEASE FORK
31210COVER ASSY, CLUTCH
31223YOKE, CLUTCH RELEASE LEVER
31223DBUSH(FOR CLUTCH RELEASE LEVER YOKE)
31230BEARING ASSY, CLUTCH RELEASE
31250DISC ASSY, CLUTCH
31302ALEVER SUB-ASSY, CLUTCH RELEASE FORK
31302BSPRING, TORSION(FOR CLUTCH RELEASE FORK LEVER)
33183DDAMPER, CLUTCH RELEASE FORK LEVER DYNAMIC
9004101317
main90041-01317
9004215052
main90042-15052
91611B0616
main91611-B0616
91611B0816
main91611-B0816
12 parts on this diagram · 1 diagram in section
CLUTCH & RELEASE FORK for Toyota DUET
This section contains 12 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota DUET. Key components include: COVER ASSY, CLUTCH, YOKE, CLUTCH RELEASE LEVER, BUSH(FOR CLUTCH RELEASE LEVER YOKE), BEARING ASSY, CLUTCH RELEASE, DISC ASSY, CLUTCH.
