Toyota DUET — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-87507i199809-200005

81670BBULB(FOR BACK-UP LAMP)

main99132-11210i199809-200005

81671ALENS & BODY, BACK-UP LAMP

main81671-87506i199809-200005

8127787502SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-87502

8155987204MOULDING, REAR COMBINATION LAMP, RH

main81559-87204

9004189059

main90041-89059

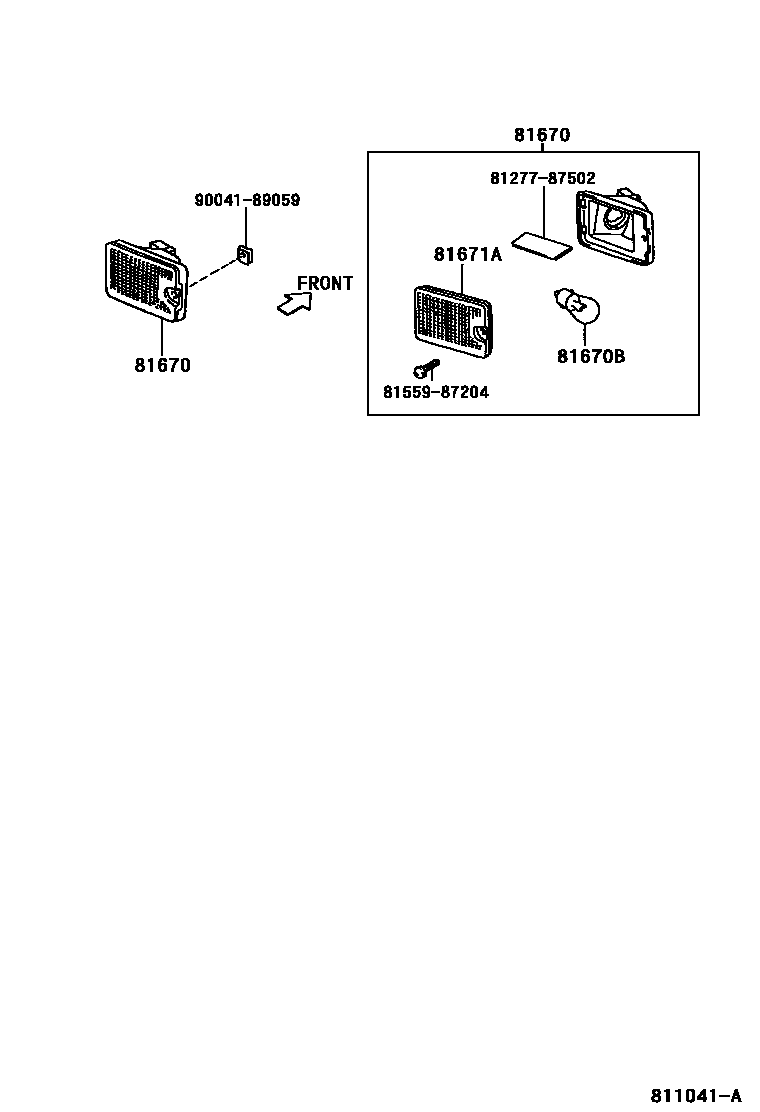

6 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota DUET

This section contains 6 genuine Toyota parts for the BACK UP LAMP system of the Toyota DUET. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS & BODY, BACK-UP LAMP, SPACER, LICENSE PLATE LAMP RIM AND LENS, MOULDING, REAR COMBINATION LAMP, RH.
