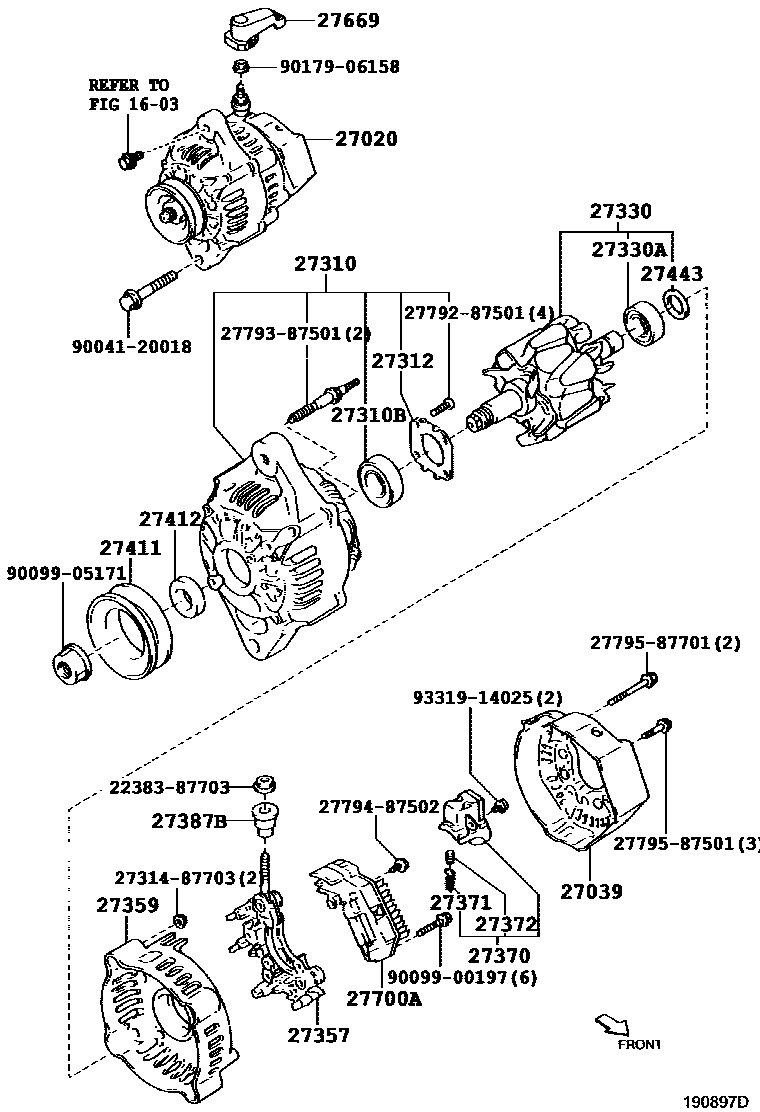

Toyota DUET — ALTERNATOR
1603RADIATOR & WATER OUTLET
27020ALTERNATOR ASSY
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27370HOLDER ASSY, ALTERNATOR BRUSH
27371BRUSH, ALTERNATOR
27372SPRING, ALTERNATOR BRUSH
27387BINSULATOR, ALTERNATOR TERMINAL
27411PULLEY, ALTERNATOR
27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27443COVER, ALTERNATOR BEARING
27669CAP, GENERATOR
27700AREGULATOR ASSY, GENERATOR
2238387703NUT, STOP WIRE BRACKET
main22383-87703
2731487703
main27314-87703
2779287501
main27792-87501
2779387501
main27793-87501
2779487502
main27794-87502
2779587501
main27795-87501
2779587701
main27795-87701
9004120018
main90041-20018
9009900197
main90099-00197
9009905171
main90099-05171
9017906158
main90179-06158
9331914025
main93319-14025
31 parts on this diagram · 2 diagrams in section
ALTERNATOR for Toyota DUET
This section contains 40 genuine Toyota parts for the ALTERNATOR system of the Toyota DUET. Key components include: RADIATOR & WATER OUTLET, ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
