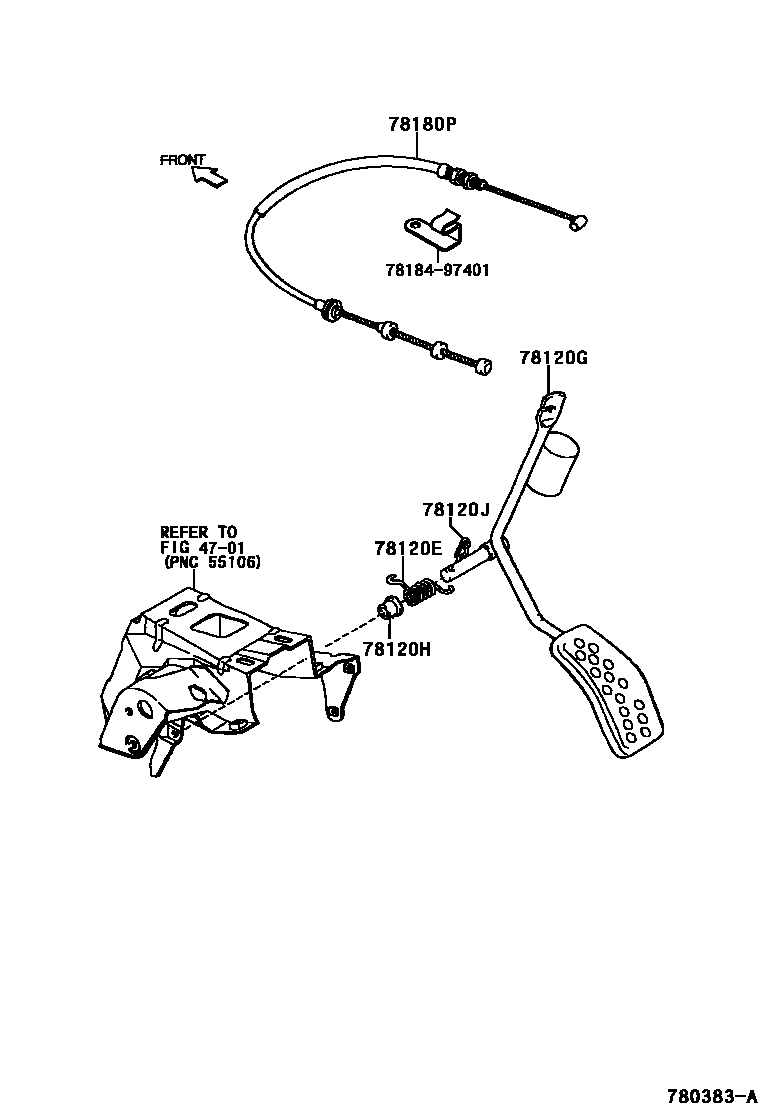

Toyota DUET — ACCELERATOR LINK
4701BRAKE PEDAL & BRACKET
78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)
78120GROD ASSY, ACCELERATOR PEDAL
78120HBUSH (FOR ACCELRATOR PEDAL ROD)
78120JCLIP (FOR ACCELRATOR PEDAL ROD)
78180PCABLE ASSY, ACCELERATOR CONTROL
7818497401CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
main78184-97401
7 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota DUET
This section contains 7 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota DUET. Key components include: BRAKE PEDAL & BRACKET, SPRING, TENSION (FOR ACCELERATOR LINK ROD), ROD ASSY, ACCELERATOR PEDAL, BUSH (FOR ACCELRATOR PEDAL ROD), CLIP (FOR ACCELRATOR PEDAL ROD).
