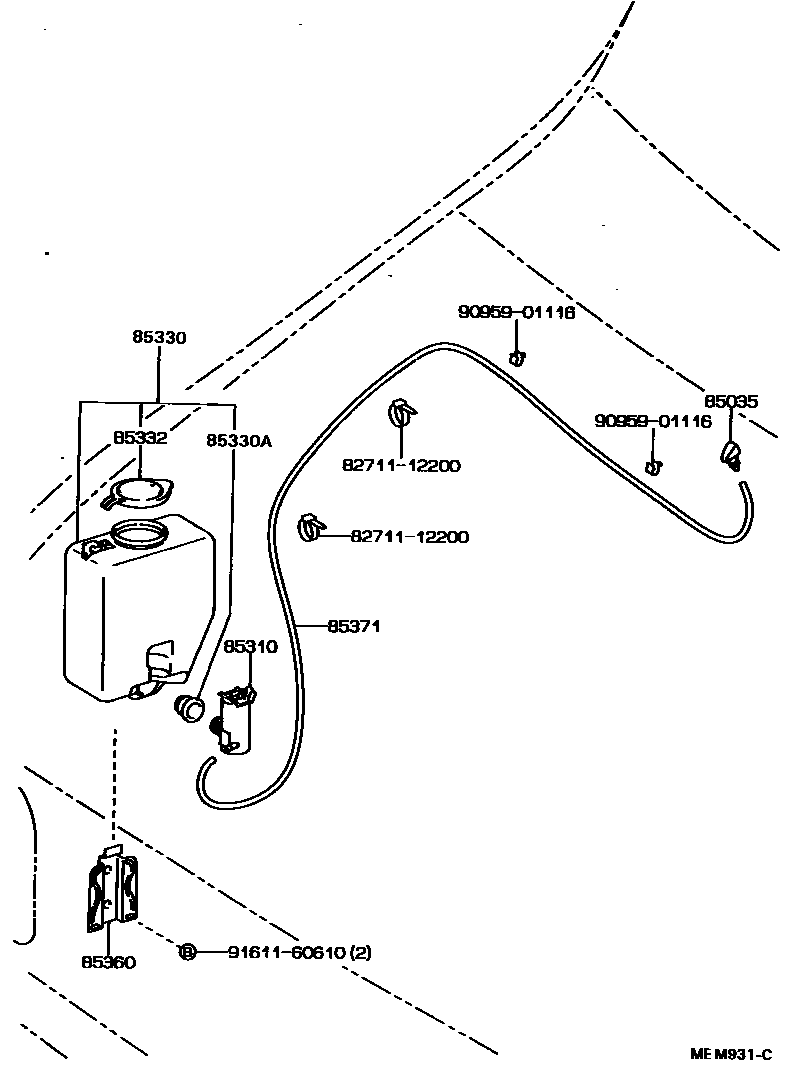

Toyota DELIBOY — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85035-90P80i198907-199511

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i198907-199511

85330JAR ASSY, WINDSHIELD WASHER

main85315-38010i199105-199409

main85330-10240i198907-199511

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199105-199409

main90099-32103i198907-199511

85332CAP, WINDSHIELD WASHER JAR

main85316-34040i199310-199409

main85332-12320i198907-199511

main85332-91602i199105-199310

85360BRACKET ASSY, WINDSHIELD WASHER

main16611-16010i198907-199511

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85374-90P80i198907-199511

main90446-06006i199105-199409

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9095901116

main90959-01116

9161160610

main91611-60610

10 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota DELIBOY

This section contains 10 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota DELIBOY. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
