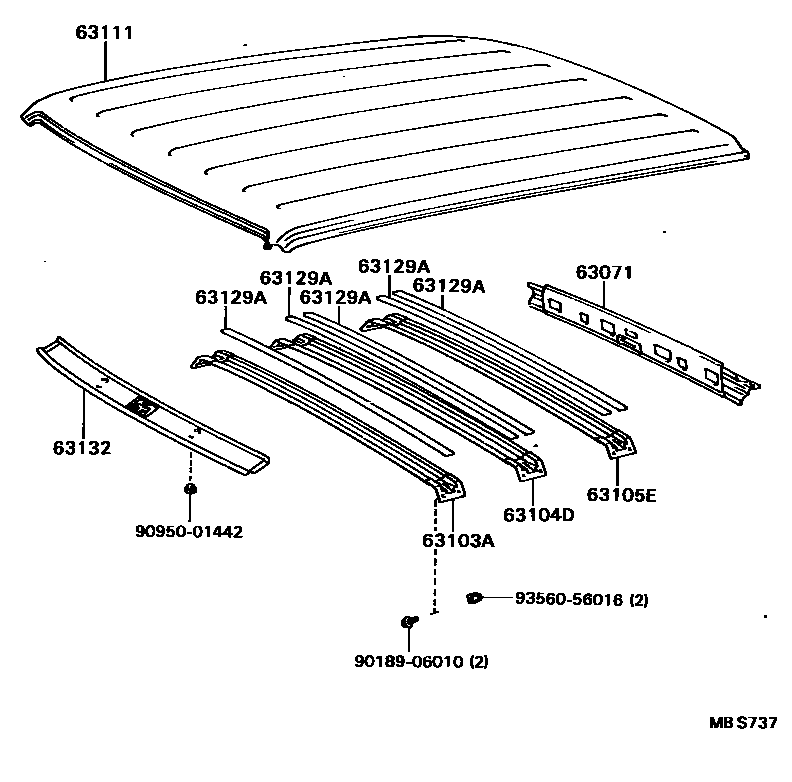

Toyota DELIBOY — ROOF PANEL & BACK PANEL

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-90P80i198907-199511

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-38010i199205-199511

main63103-90P80i198907-199511

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-90P80i198907-199511

63105EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63105-90P80i198907-199511

63111PANEL, ROOF

main63111-90P80i198907-199511

63129ACUSHION, ROOF REINFORCEMENT

main63129-90P80×3i198907-199105

63132PANEL, WINDSHIELD HEADER, INNER

main63132-90P80i198907-199511

9018906010

main90189-06010

9095001442

main90950-01442

9356056016

main93560-56016

10 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK PANEL for Toyota DELIBOY

This section contains 10 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota DELIBOY. Key components include: FRAME SUB-ASSY, BACK DOOR OPENING, UPPER, REINFORCEMENT SUB-ASSY, ROOF PANEL, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3, PANEL, ROOF.
