Toyota DELIBOY — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
55133PLATE, FRONT FENDER APRON SET, LOWER RH
55134PLATE, FRONT FENDER APRON SET, LOWER LH
57035PANEL SUB-ASSY, FRONT STEP, RH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57111ARAIL, FLOOR SIDE, RH
57112ARAIL, FLOOR SIDE, LH
57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH
57168ASILENCER, SIDE MEMBER, LH
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57366GUSSET, FRONT STEP, REAR LH
57381PANEL, FRONT STEP, LH
57382PANEL, FRONT STEP, FRONT LH
57383PANEL, FRONT STEP, REAR LH
57434REINFORCEMENT, STEP PANEL, LOWER LH
57446REINFORCEMENT, NO.5 BODY MOUNTING, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
58111PAN, FRONT FLOOR
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58251AREINFORCEMENT, FRONT SEAT, FRONT RH
58261BREINFORCEMENT, FRONT SEAT, FRONT LH
58306GGUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
58708CSUPPORT SUB-ASSY, JACK
61688CBRACKET, MUDGUARD, REAR LH
67853BWEATHERSTRIP, STEP PANEL
67868KCLIP, STEP PANEL WEATHERSTRIP
68389SPRING, SLIDE DOOR CATCH, LH
5744295700PLUG, STEP PANEL HOLE
main57442-95700
9095001049
main90950-01049
9095001269
main90950-01269
9095001324
main90950-01324
9095001356
main90950-01356
9095001398
main90950-01398
9095001424
main90950-01424
9095001450
main90950-01450
9095001599
main90950-01599
9165160612
main91651-60612

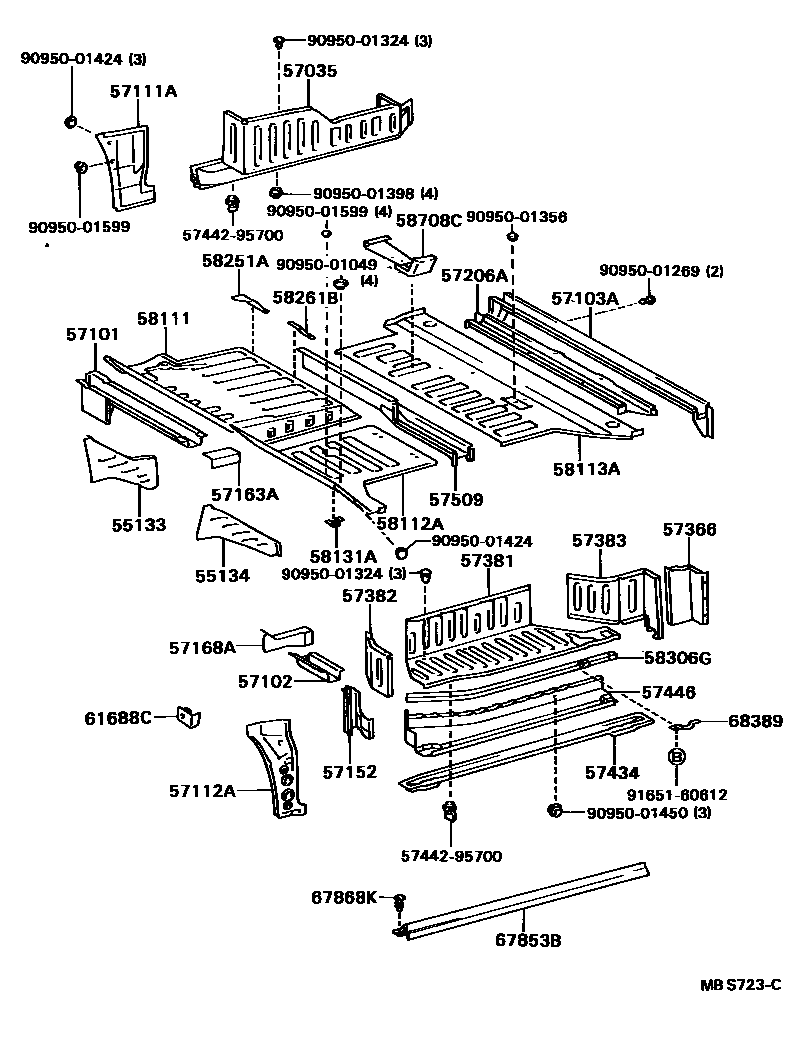

41 parts on this diagram · 1 diagram in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota DELIBOY
This section contains 41 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota DELIBOY. Key components include: PLATE, FRONT FENDER APRON SET, LOWER RH, PLATE, FRONT FENDER APRON SET, LOWER LH, PANEL SUB-ASSY, FRONT STEP, RH, MEMBER SUB-ASSY, FRONT SIDE, RH, MEMBER SUB-ASSY, FRONT SIDE, LH.
