Toyota DELIBOY — FRAME

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

51071ABRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1

main51071-27050×2i198907-199511

51071BBRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2

main51071-27090×2i198907-199511

51071CBRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3

main51071-27080×2i198907-199511

51100FFRAME SUB-ASSY

main51001-27460i198907-199105

main51001-27590i199105-199511

main51001-27600i199105-199409

main51001-27610i199105-199409

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-27140i198907-199105

main51201-27150i199105-199511

51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-27040i198907-199511

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-27080i198907-199511

main51203-27100i199105-199409

main51203-27110i199105-199409

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-27110i198907-199205

main51204-38030i199205-199511

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-27110i198907-199205

main51205-38020i199205-199511

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-27120i198907-199511

51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7

main51207-27080i198907-199511

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-27080i198907-199511

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-27080i198907-199511

51235BBRACKET, RACK HOUSING

main51235-27030×2i199105-199511

51331GUSSET, FRAME NO.3 CROSSMEMBER, RH

main51331-27050×2i198907-199511

main51331-27060×2i199105-199409

51333RETAINER, FRAME NO.3 CROSSMEMBER, RH

main51333-27040×2i198907-199205

main51333-38010×2i199205-199511

51343GUSSET, CROSSMEMBER NO.4 UNDER

main51343-27050×2i198907-199205

main51343-38010×2i199205-199511

51351GUSSET, CROSSMEMBER, NO.5 RH

main51351-27070×2i198907-199511

51352GUSSET, CROSSMEMBER, NO.5 LH

main51351-27070×2i198907-199511

51371GUSSET, FRAME NO.7 CROSSMEMBER, NO.1

main51371-27030×4i198907-199511

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-27080i198907

main51401-27090i199105-199409

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-27050i198907-199511

main51402-27060i199105-199409

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-27010i198907-199511

51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51404-27010i198907-199511

main51404-27020i199105-199409

51505ASUPPORT SUB-ASSY, UPPER CONTROL ARM

main51505-27090i198907-199511

51505CSUPPORT SUB-ASSY, ANCHOR ARM, RH

main51505-27100i198907-199511

51506ASUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-27090i198907-199511

51506CSUPPORT SUB-ASSY, ANCHOR ARM, LH

main51506-27100i198907-199511

5153SPARE WHEEL CARRIER

→ Go to FIG 51-53

51605BRACKET SUB-ASSY, REAR BOUND STOPPER

main51605-27060×2i198907-199511

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-27050i198907-199511

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-27060i198907-199511

51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3

main51705-27090×2i198907-199511

57105BREINFORCE SUB-ASSY, STRUT BAR BRACKET, RH

main57105-27020i198907-199511

57106BREINFORCE SUB-ASSY, STRUT BAR BRACKET, LH

main57106-27010i198907-199105

main57106-27020i199105-199511

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-27040i198907-199105

main57107-27050i199105-199511

main57107-27060i199105-199409

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-27040i198907-199105

main57108-27050i199105-199511

main57108-27060i199105-199409

9165160820

main91651-60820

9165160825

main91651-60825

9165161020

main91651-61020

42 parts on this diagram · 1 diagram in section

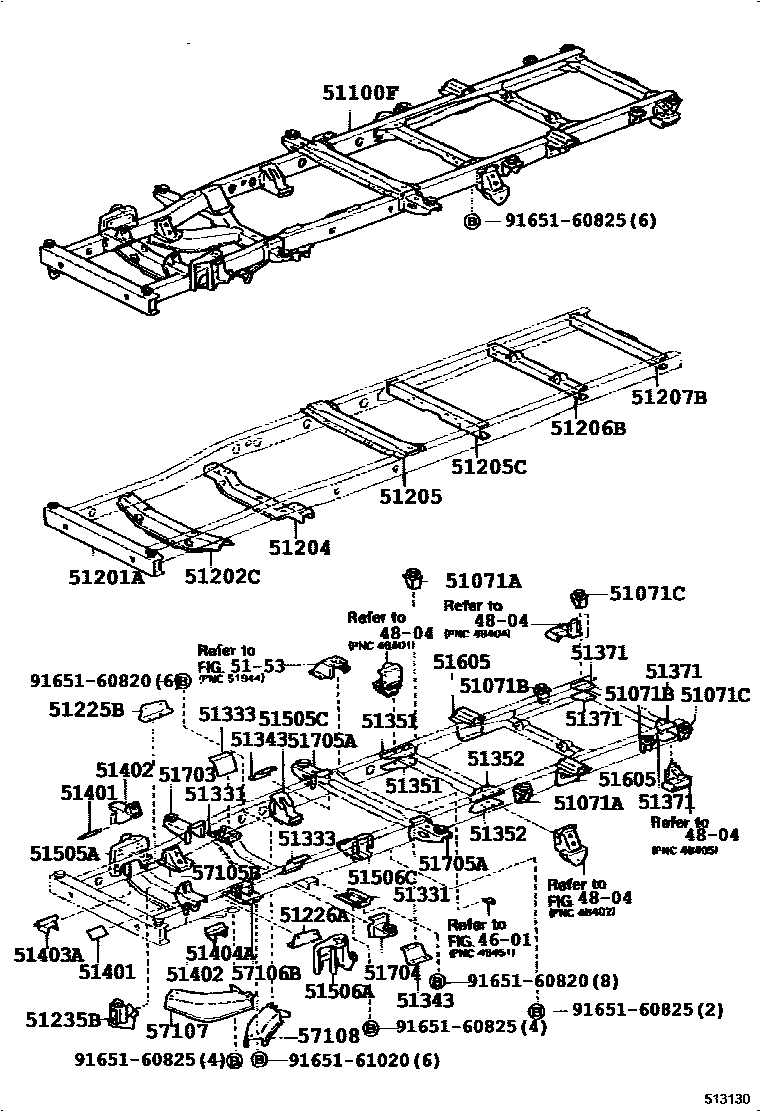

FRAME for Toyota DELIBOY

This section contains 42 genuine Toyota parts for the FRAME system of the Toyota DELIBOY. Key components include: PARKING BRAKE & CABLE, REAR SPRING & SHOCK ABSORBER, BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1, BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2, BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3.
