Toyota CYNOS — WINDSHIELD WASHER

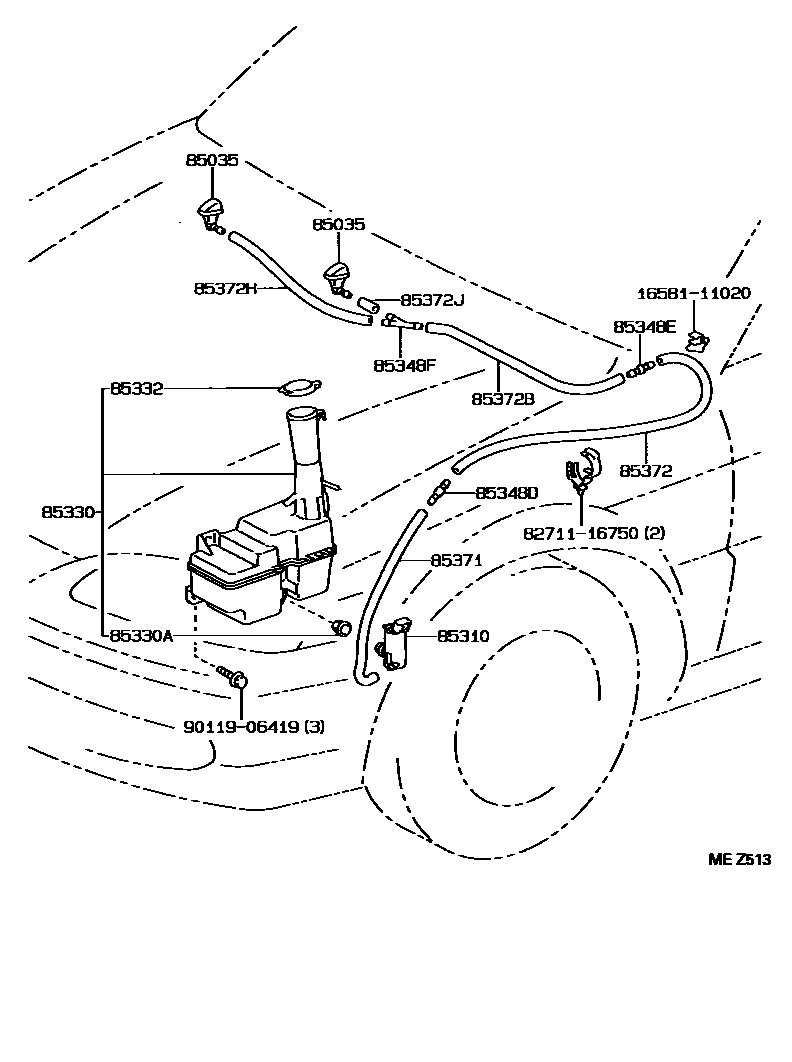

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-16090×2i199508

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210i199508-199608

main85330-10280i199608

main85330-10290i199608

main85330-12280i199508-199608

85330JAR ASSY, WINDSHIELD WASHER

main85315-16070i199508

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199508

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i199508-199608

main85316-33050i199608

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85349-89122i199508

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85349-89122i199508

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85348-14390i199508

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i199508

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i199508

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i199508

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i199508

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i199508

1658111020CLAMP, HOSE(FOR WATER HOSE)

main16581-11020

8271116750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16750

9011906419

main90119-06419

16 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CYNOS

This section contains 16 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CYNOS. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
